78RB10T

DIP Switches / SIP Switches DIP Switch, SPST, recessed slide, 10Position, RoHS Compliant

DIP SPST 位置 通孔 滑动式（标准） 触动器 150mA 30VDC

得捷:
SWITCH SLIDE DIP SPST 150MA 30V

贸泽:
DIP Switches / SIP Switches DIP Switch, SPST, recessed slide, 10 position, RoHS Compliant

艾睿:

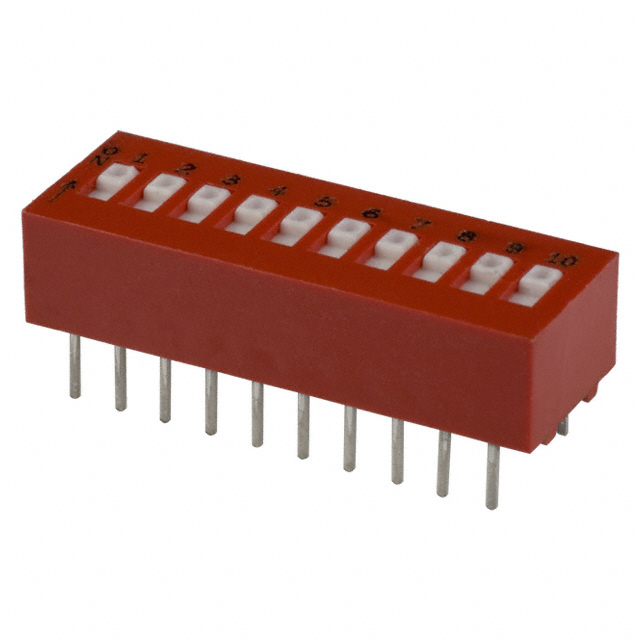

By acting as a series of switches, the 78RB10T dual in-line package switch from Grayhill is the ideal component for use on a printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 78RB10T DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 27.4 mm long, 6.73 mm tall and 9.65 mm deep. The maximum DC voltage rating is 30 VDC.

安富利:
Switch DIP OFF ON SPST 10 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP OFF ON SPST 10 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  78RB10T  DIP Switch, SPST, recessed slide, 10 position, RoHS Compliant

MASTER:
Switch DIP OFF ON SPST 10 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 10 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
