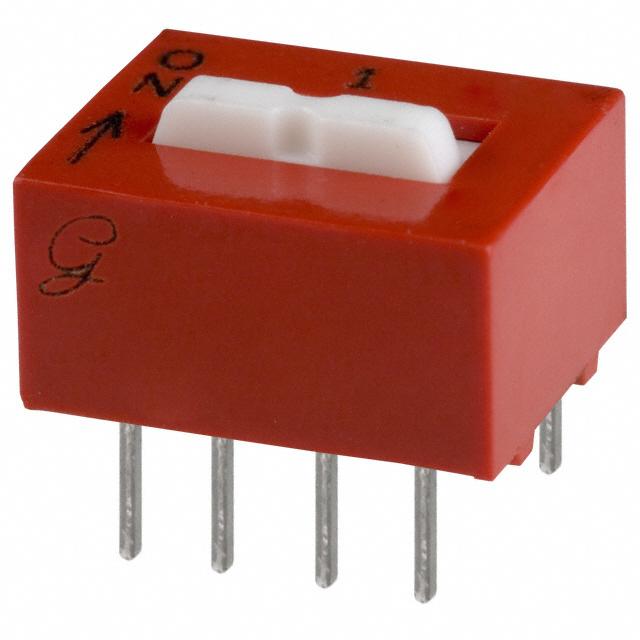

78 系列 凸起式 滑动 四刀单掷 1 位置 通孔 DIP 开关
is manufactured by and is categorized in the DIP Switches category. 78H01T is described as SWITCH SLIDE DIP 4PST 150MA 30V. Perfect Parts is a supplier of Switches and other Electromechanicals.
得捷:
SWITCH SLIDE DIP 4PST 150MA 30V
贸泽:
DIP 开关/ SIP 开关 DIP Switch 4PST Raised Slide 1 Pos
艾睿:
Switch DIP N.O./N.C. 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
安富利:
Switch DIP OFF ON 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP OFF ON 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Verical:
Switch DIP OFF ON 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube
Newark:
# GRAYHILL 78H01T DIP / SIP Switch, Raised Slide, 1 Circuits, 4PST, Through Hole, DIP Unsealed, 24 VDC
MASTER:
Switch DIP OFF ON 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP OFF ON 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
额定电压DC 30 V
接触器类型 Standard
额定电流 150 mA
绝缘电阻 5000 MΩ
方向 Vertical
触点类型 4PST
电路数 1
针脚数 1
接触电阻 30 mΩ
额定电流Max 0.15A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
额定电压DC Max 30 V
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 12.2 mm
宽度 9.65 mm
高度 8 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
