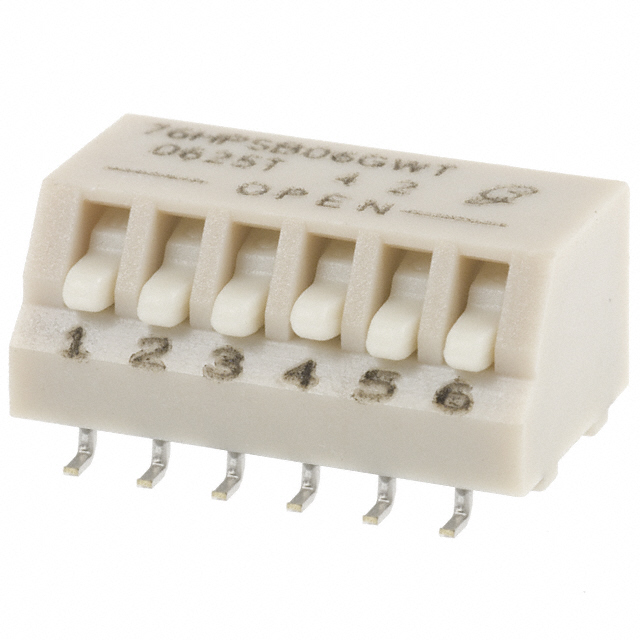

76HP 系列 侧面触动 单刀单掷 6 位置 表面贴装 DIP 开关
Does your printed circuit board need some type of electronic flow control? The dual in-line package switch, developed by , is the component you need. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 76HPSB06GWRT DIP switch has a gull wing termination style. This product"s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC. This product is 17.3 mm long, 8.57 mm tall and 10.77 mm deep.
额定电压DC 30 V
额定电流 150 mA
触点类型 SPST
针脚数 6
额定电流Max 0.15A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
额定电压DC Max 30 V
接触电阻Max 30 mΩ
安装方式 Surface Mount
封装 DIP
引脚间距 2.54 mm
长度 17.3 mm
宽度 10.77 mm
高度 8.57 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
