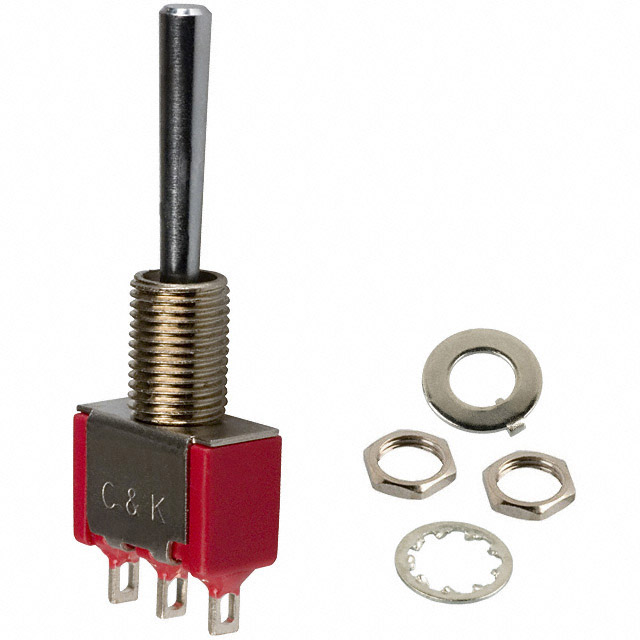

7101L1YZQE

Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

C&K Series 7000 toggle switches come in a variety of bushing, mounting and toggle styles all miniature scale in size. Available right angle pcb mounting vertical or horizontal operation makes the most of limited space and epoxy terminal seals are compatible with bottom wash cleaning.

立创商城:
7101L1YZQE

艾睿:
This 7101L1YZQE toggle switch from C&a;K Components acts like a light switch to turn on or off any part of your circuit. This device has a maximum current rating of 5 A @ 120VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The 7101L1YZQE toggle switch has a solder lug termination style. This product is 12.7 mm long, 37.98 mm tall and 6.86 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch, LONG ROUND Toggle, SPDT, ON-NONE-ON, PNL-MNTED

安富利:
Switch Toggle ON None ON SPDT Round Toggle Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

Chip1Stop:
Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

Verical:
Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk

MASTER:
Miniature Toggle Switch

Online Components:
Miniature Toggle Switch

Electro Sonic:
Miniature Toggle Switch
