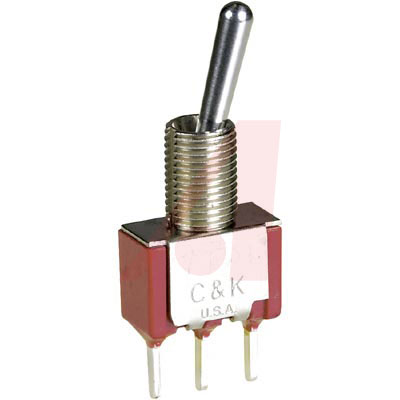

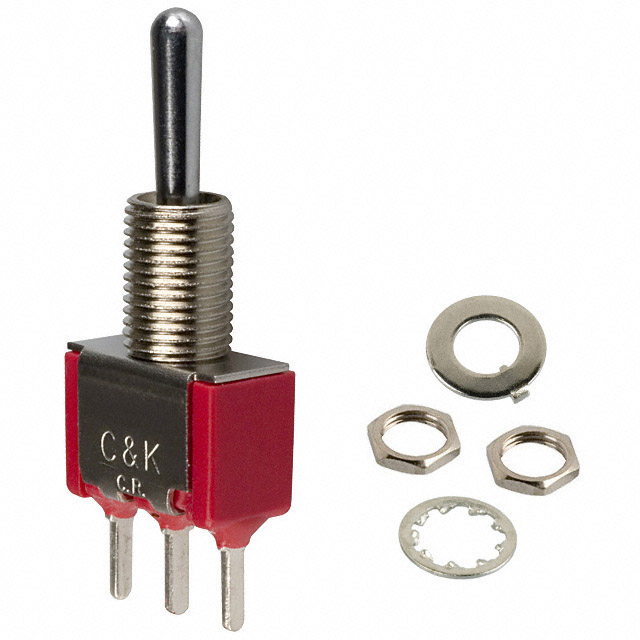

7000 系列 5 A 小型 单刀双掷 瞬时-关-瞬时 通孔 摇臂开关
The is a 5A non-illuminated SPDT Unsealed Miniature Toggle Switch with ON-OFF-ON switch operation. It has panel-mount, rear, threaded mounting, thru-hole termination, standard round actuator and 1/4 - 40 bushing.
- .
- Wide variety of actuator and termination options
- .
- Epoxy terminal-seal compatible with bottom wash cleaning
- .
- 40000 Electrical life cycles
- .
- -30 to 85°C Operating temperature range
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 5 A
绝缘电阻 ≥1000 MΩ
排数 1
触点类型 SPDT
针脚数 3
接触电阻 ≤10 MΩ
绝缘 Epoxy
额定电流Max 5A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 120 VAC
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Through Hole
封装 120
长度 12.7 mm
高度 30 mm
封装 120
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, Aerospace, Defence, Military, Sensing & Instrumentation, Medical, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
HTS代码 8536509065
