78RB12T

Switch DIP OFF ON SPST 12 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/Switch 2.54mm Thru-Hole Tube

DIP SPST 12 位置 通孔 滑动式（标准） 触动器 150mA 30VDC

得捷:
SWITCH SLIDE DIP SPST 150MA 30V

艾睿:

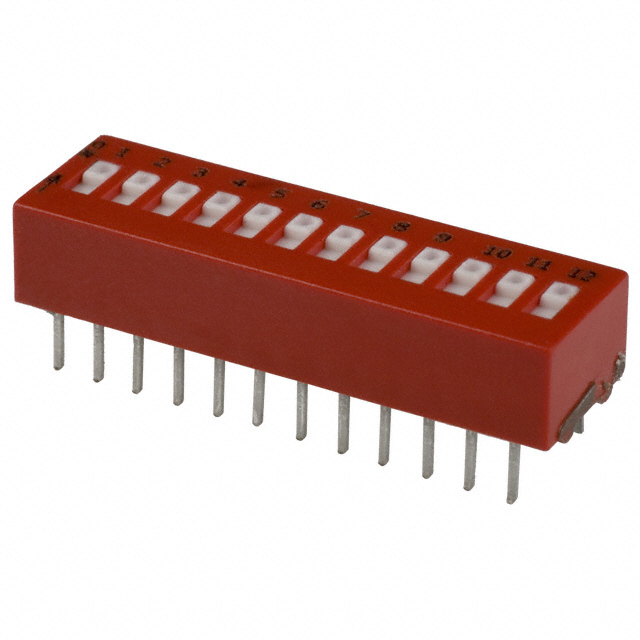

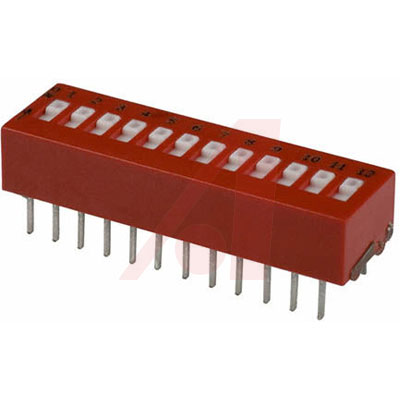

By acting as a series of switches, the 78RB12T dual in-line package switch from Grayhill is the ideal component for use on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.15 A @ 30VDC. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 78RB12T DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 32.5 mm long, 6.73 mm tall and 9.65 mm deep.

Allied Electronics:
Switch, DIP; 1.280 in. L x 0.380 in. W x 0.245 in. H; 12; SPST; Thru-Hole

安富利:
Switch DIP OFF ON SPST 12 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP OFF ON SPST 12 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 12 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  78RB12T  DIP Switch, SPST, recessed slide, 12 position, RoHS Compliant

MASTER:
Switch DIP OFF ON SPST 12 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 12 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
