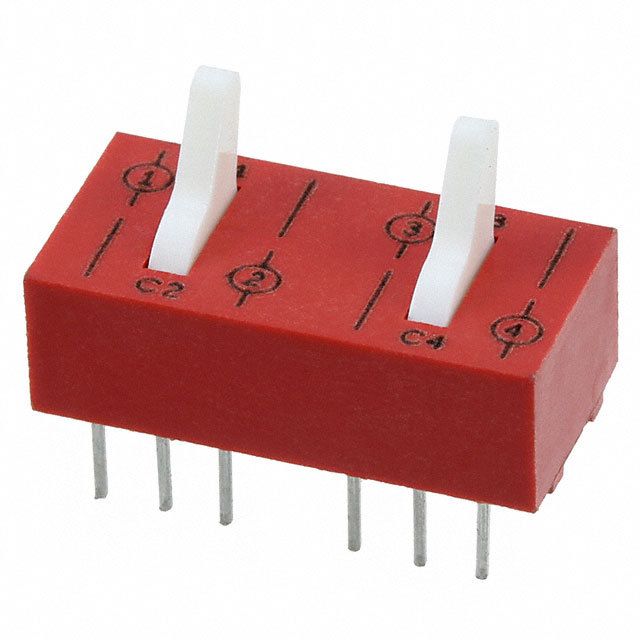

76STD02T

GRAYHILL  76STD02T  开关, DIP, 2路

is manufactured by and is categorized in the DIP Switches category. 76STD02T is described as SWITCH TOGGLE DIP DPDT 150MA 30V. Perfect Parts is a supplier of Switches and other Electromechanicals.

得捷:
SWITCH TOGGLE DIP DPDT 150MA 30V

贸泽:
DIP Switches / SIP Switches DIP Switch DPDT form D toggle DIP 2 Pos

e络盟:
开关, DIP, 2路, DPDT, 拨动

艾睿:
Easily customize your printed circuit with the use of the 76STD02T dual in-line package switch, designed from Grayhill. It has a DPDT configuration. This device has a maximum current rating of 0.15 A @ 30VDC. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 76STD02T DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC. This product is 19.8 mm long, 11.86 mm tall and 9.65 mm deep.

安富利:
Switch DIP ON OFF DPDT 2 Toggle 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP ON OFF DPDT 2 Toggle 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON DPDT 2 Toggle 0.15A 30VDC PC Pins 2000Cycles/Switch 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  76STD02T  DIP / SIP Switch, Lever, 2 Circuits, DPDT, Through Hole, 76 Series, DIP Unsealed, 30 VDC

Electro Sonic:
Switch DIP ON OFF DPDT 2 Toggle 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
