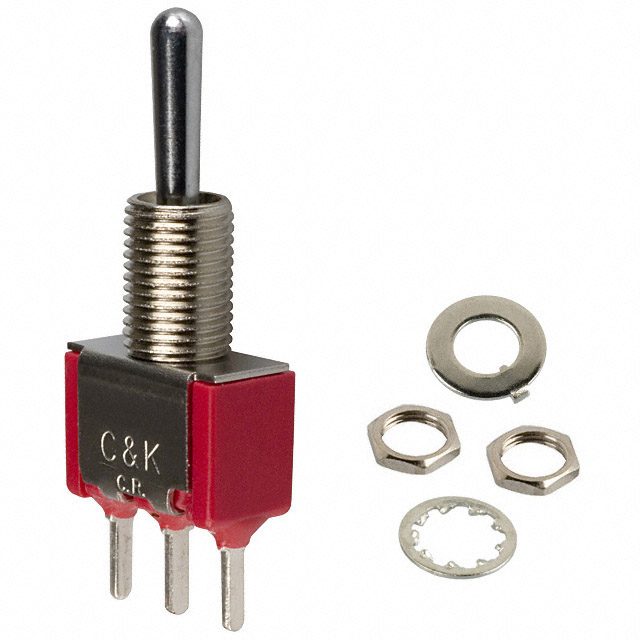

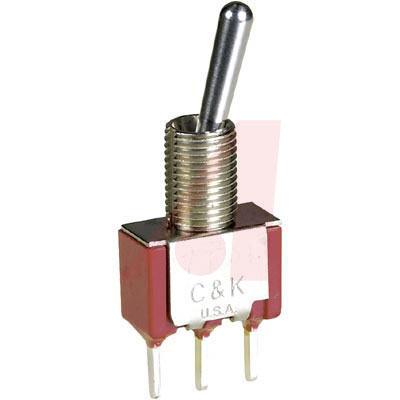

7107SYCQE

7000 系列 5 A 小型 单刀双掷 开-关-瞬时 通孔 摇臂开关

C&K Series 7000 toggle switches come in a variety of bushing, mounting and toggle styles all miniature scale in size. Available right angle pcb mounting vertical or horizontal operation makes the most of limited space and epoxy terminal seals are compatible with bottom wash cleaning.

立创商城:
7107SYCQE

艾睿:
This 7107SYCQE toggle switch from C&a;K Components is the best at minimizing lag between switches in your design. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 120VAC 28VDC. This toggle switch has an operating temperature range of -30 °C to 85 °C. The 7107SYCQE toggle switch has a PC pin termination style. This product is 12.7 mm long, 30 mm tall and 6.86 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch, Toggle, PC-MNTED, SPDT, ON-OFF-MOM., PC Terminal, 5A@120VACF OR 28VDC

安富利:
Switch Toggle ON OFF Mom SPDT Round Toggle PC Pins 5A 250VAC 28VDC PC Mount with Threads

Chip1Stop:
Switch Toggle ON OFF Mom SPDT Round Lever PC Pins 5A 250VAC 28VDC PC Mount with Threads

Verical:
Switch Toggle ON OFF Mom SPDT Round Lever PC Pins 5A 250VAC 28VDC PC Mount with Threads Medical Bulk

Newark:
# C & K COMPONENTS  7107SYCQE  Toggle Switch,RIGHT ANGLE,SPDT,ON-OFF-ON,PC TAIL Terminal,TOGGLE BAT,PCB Hole Count:3

MASTER:
Miniature Toggle Switch

Electro Sonic:
Miniature Toggle Switch
