7201P3YZQE

C & K COMPONENTS  7201P3YZQE  拨动开关, 7000系列, 不发光, DPDT, 开-开, 面板, 5 A

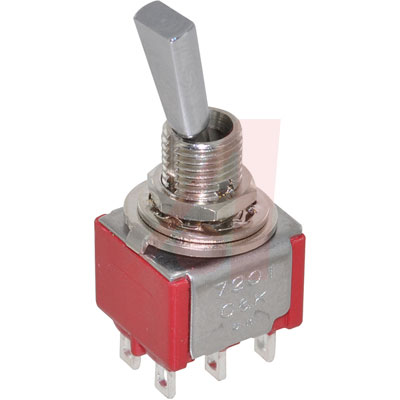

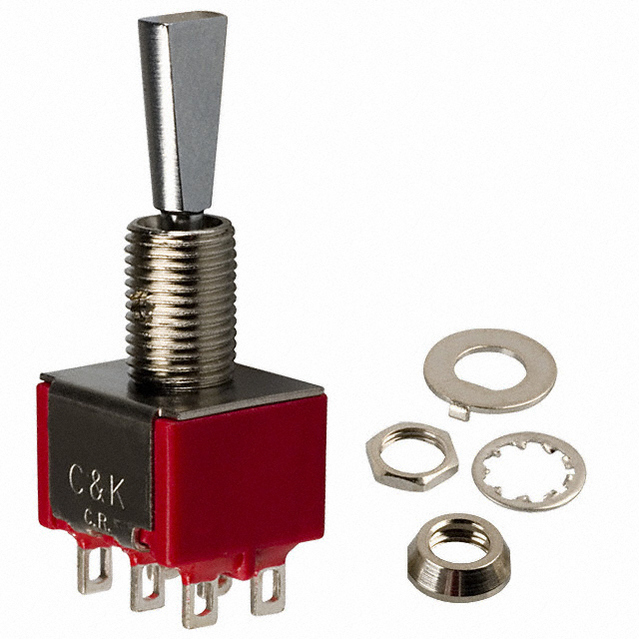

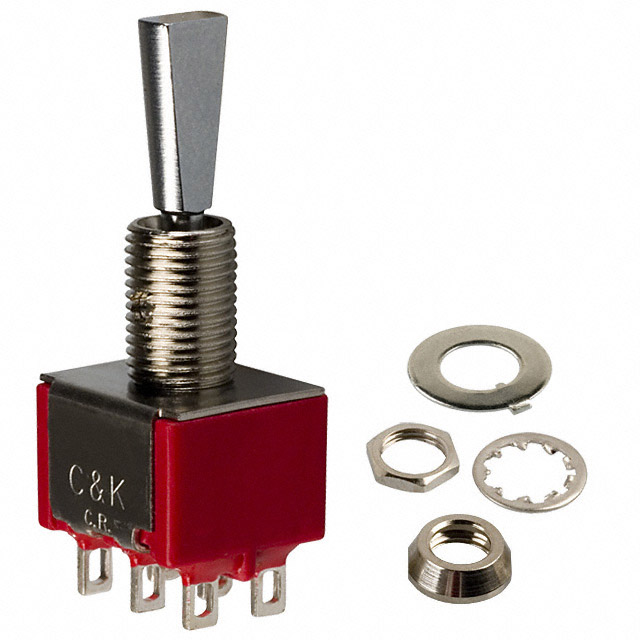

The is a double-pole double-throw DPDT Miniature Toggle Switch with solder lug termination, 0.45-inch high flatted anti-rotation chrome plated brass actuator, 0.35-inch high keyway bushing and ON-NONE-ON function. The 7000 series switch has silver plated coin silver contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.

.

1000Vrms at sea level Minimum dielectric strength

.

-30 to 65°C Operating temperature range

.

Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 1 hour steam aging
