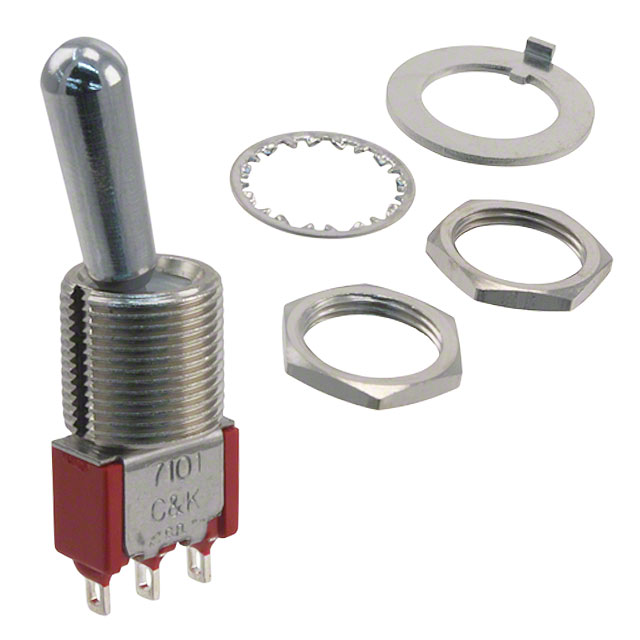

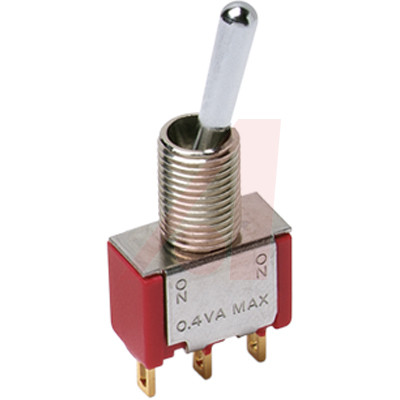

7101TCWZQE

Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

**Features:**

• Multi-pole and multi-position

• Wide variety of actuator and termination options

• Epoxy terminal-seal compatible with bottom wash cleaning

**Typical Applications:**

• Telecommunications

• Instrumentation

• Medical equipment

立创商城:
7101TCWZQE

艾睿:
Using this 7101TCWZQE toggle switch from C&a;K Components is ideal for toggling the power of your applications. This device has a maximum current rating of 5 A @ 120VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The 7101TCWZQE toggle switch has a solder lug termination style. This product is 12.7 mm long, 42.17 mm tall and 11.81 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch; Toggle; SPDT; ON-ON; Standard Round; Non-Illum; IP67; 5A; 120VAC; 28VDC; Solder

安富利:
Switch Toggle ON None ON SPDT Round Toggle Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

Chip1Stop:
Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

Verical:
Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk

Newark:
# C & K COMPONENTS  7101TCWZQE  Toggle Switch,STRAIGHT,SPDT,ON-ON,SOLDER Terminal,TOGGLE BAT

MASTER:
Miniature Toggle Switch

Online Components:
Miniature Toggle Switch

Electro Sonic:
Miniature Toggle Switch
