拨动开关 ON OFF ON SPDT 5A 250VAC 28VDC

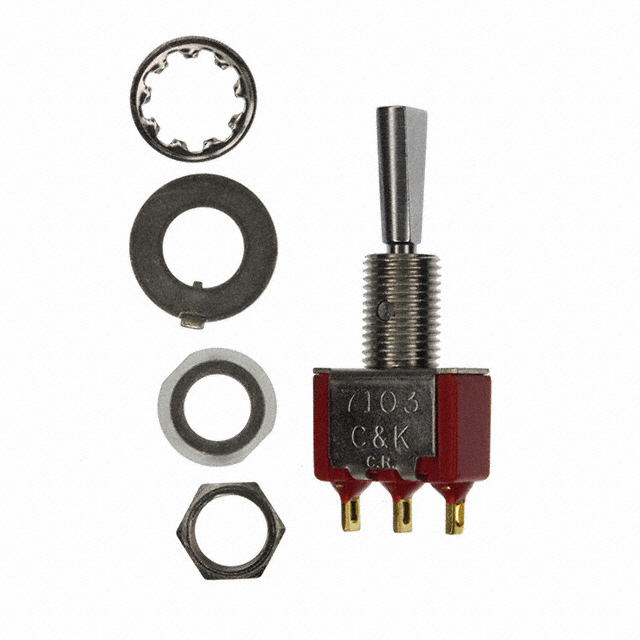

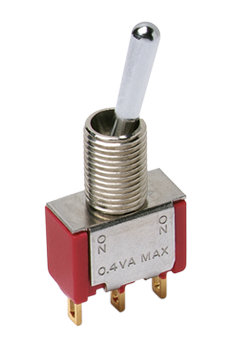

Miniature Toggle Switch
立创商城:
7103P3YZGE
贸泽:
拨动开关 ON OFF ON SPDT 5A 250VAC 28VDC
艾睿:
Switch Toggle ON OFF ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC 0.4VA Panel Mount with Threads Medical Bulk
Allied Electronics:
Switch Toggle ON OFF ON SPDT Flat Lever Solder Lug
Verical:
Switch Toggle ON OFF ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC 0.4VA Panel Mount with Threads Medical Bulk
Newark:
# C & K COMPONENTS 7103P3YZGE Toggle
MASTER:
Miniature Toggle Switch
Online Components:
Miniature Toggle Switch
Electro Sonic:
Miniature Toggle Switch
绝缘电阻 10 GΩ
排数 1
触点类型 SPDT
绝缘 Epoxy
额定电流Max 5A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Panel, Screw-In
封装 -
长度 12.7 mm
高度 33.15 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
