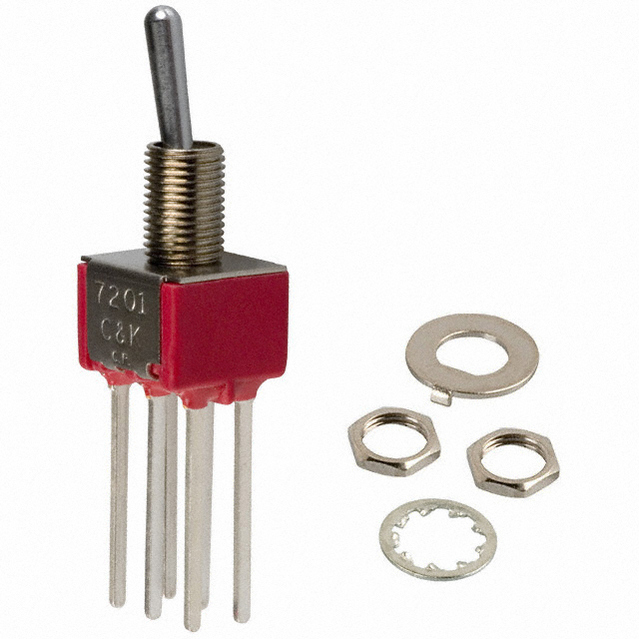

Switch Toggle ON None ON DPDT Round Lever Wire Wrap 5A 250VAC 28VDC Panel Mount with Threads
Miniature Toggle Switch
立创商城:
7201SYWQE
艾睿:
Switch Toggle ON None ON DPDT Round Lever Wire Wrap 5A 250VAC 28VDC Panel Mount with Threads Bulk
安富利:
Switch Toggle ON None ON DPDT Round Toggle Wire Wrap 5A 250VAC 28VDC Panel Mount with Threads
Chip1Stop:
Switch Toggle ON None ON DPDT Round Lever Wire Wrap 5A 250VAC 28VDC Panel Mount with Threads
Verical:
Switch Toggle ON None ON DPDT Round Lever Wire Wrap 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
Newark:
# C & K COMPONENTS 7201SYWQE Toggle
MASTER:
Miniature Toggle Switch
Online Components:
Miniature Toggle Switch
Electro Sonic:
Miniature Toggle Switch
额定电压DC 28 V
额定电压AC 120 V
排数 2
触点类型 2PDT
额定电流Max 5A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Vertical
封装 -
长度 12.7 mm
高度 47.5 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
