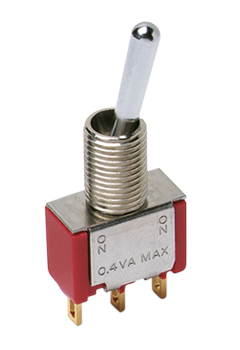

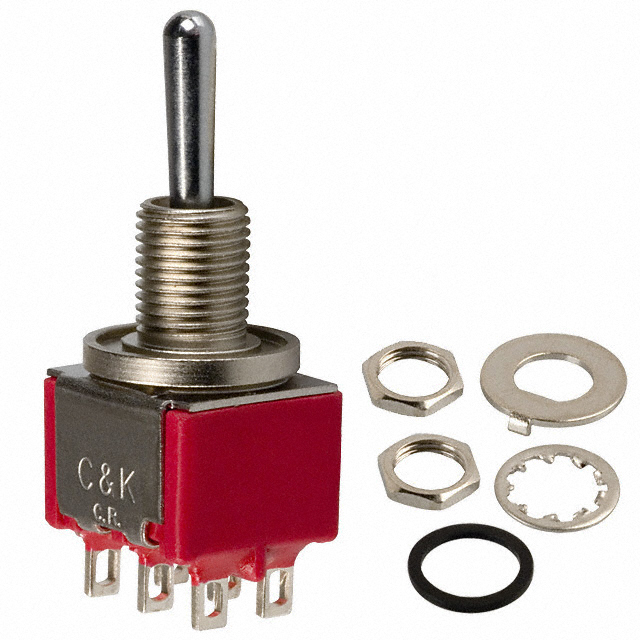

7000 Series DPDT 5A 120VAC/28VDC Toggle Switch
Miniature Toggle Switch
立创商城:
7203SCWZQE
贸泽:
Toggle Switches ON-OFF-ON DPDT SEAL
艾睿:
Switch Toggle ON OFF ON DPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
Chip1Stop:
Switch Toggle ON OFF ON DPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Verical:
Switch Toggle ON OFF ON DPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Bulk
MASTER:
Miniature Toggle Switch
Electro Sonic:
Miniature Toggle Switch
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 5 A
排数 2
触点类型 2PDT
额定电流Max 5A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
安装方式 Through Hole
封装 -
长度 12.7 mm
高度 33 mm
封装 -
触点材质 Coin Silver
工作温度 30℃ ~ 85℃
产品生命周期 40000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
