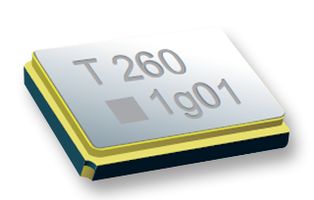

TXC 7M-36.000MAAJ-T 晶振, 36.000MHz, 18pF, SMD, 3.2X2.5
36MHz ±30ppm Crystal 18pF 60 Ohms 4-SMD, No Lead
得捷:
CRYSTAL 36.0000MHZ 18PF SMD
立创商城:
36MHz ±30ppm 18pF
e络盟:
晶体, 36 MHz, SMD, 3.2mm x 2.5mm, 30 ppm, 18 pF, 30 ppm, 7M系列
艾睿:
Crystal 36MHz ±30ppm Tol ±30ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
Verical:
Crystal 36MHz ±30ppm Tol ±30ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
Newark:
# TXC 7M-36.000MAAJ-T Crystal, Surface Mount, 36 MHz, SMD, 3.2mm x 2.5mm, 30 ppm, 18 pF, 30 ppm, 7M Series
频率 36 MHz
频率稳定度 ±30 ppm
频率容差 ±30 ppm
等效串联电阻ESR 60 Ω
负载电容 18 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4

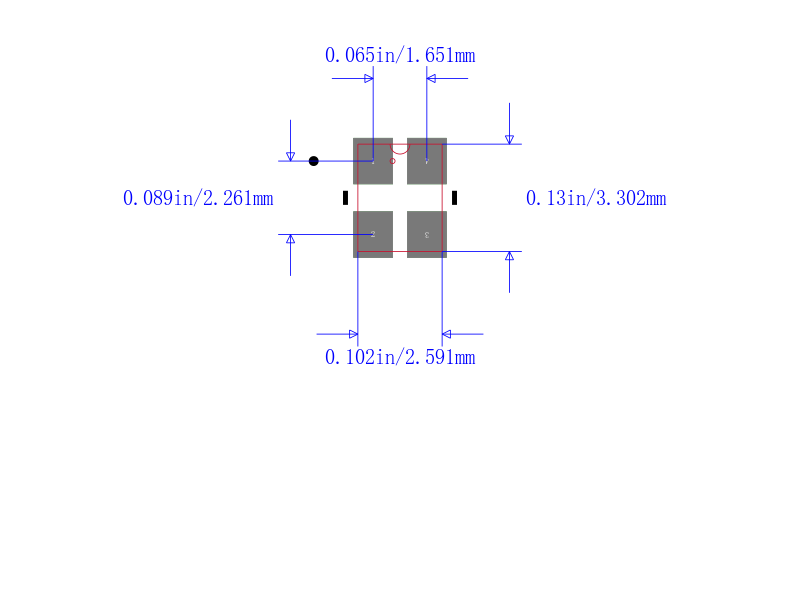

封装 SMD-4
长度 3.2 mm
宽度 2.5 mm
高度 0.7 mm
封装 SMD-4
工作温度 -20℃ ~ 70℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
