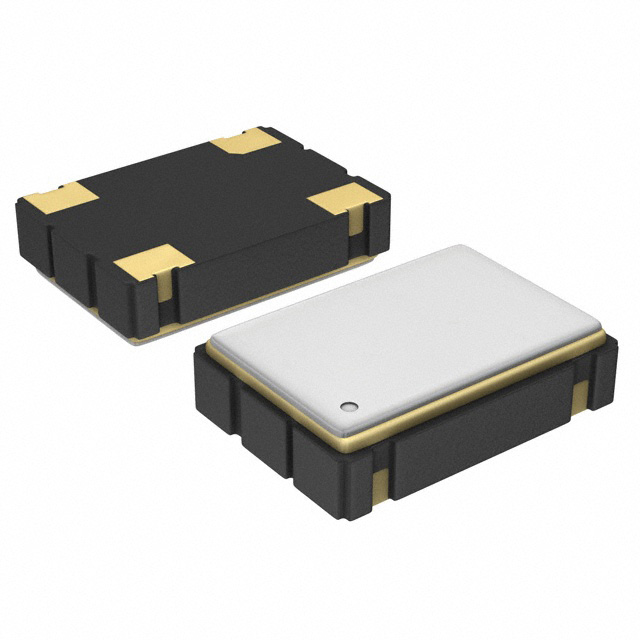

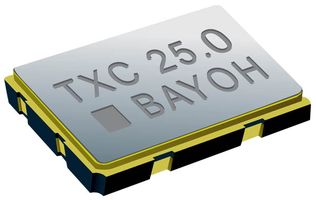

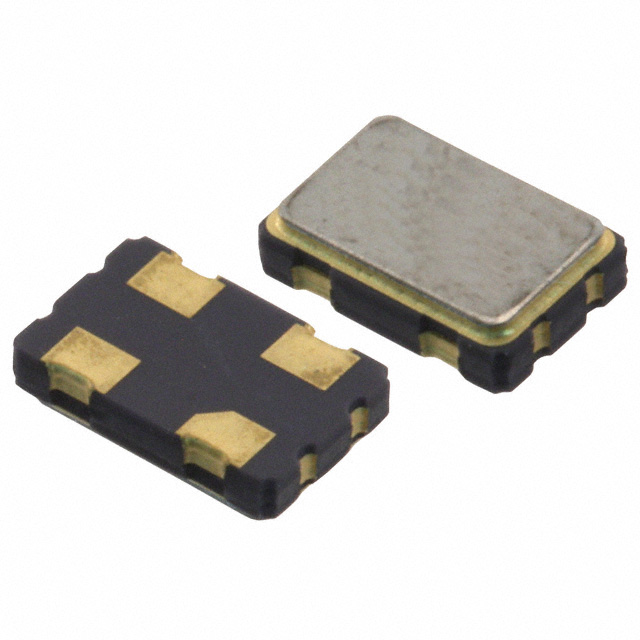

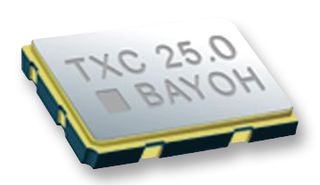

TXC 7C-4.000MBA-T 振荡器, 4.000MHz, 3.3V, SMD, 5.0X3.2
The is a 5 x 3.2mm 3.3V 25ppm surface-mount Clock Crystal Oscillator with standby function for tri-state output and seam sealed. The 7C series oscillator designed for automatic mounting and reflow soldering. It features high precision characteristics, high stability, low jitter and low power consumption. It is for wireless communication set, PDA and DSC applications.
- .
- Fundamental or 3rd overtone oscillation mode
- .
- 10ns Maximum rise or fall time
- .
- 10ms Maximum start-up time
- .
- 1ps Maximum phase jitter
- .
- 40 to 60% Symmetry
频率 4 MHz
电源电压DC 1.80V min
频率稳定度 ±25 ppm
负载电容 30 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.3 V
电源电压Max 3.3 V
电源电压Min 3.3 V
安装方式 Surface Mount
引脚数 4
封装 SMD-4
长度 5 mm
宽度 3.2 mm
高度 1.2 mm
封装 SMD-4
工作温度 -10℃ ~ 70℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
制造应用 通信与网络, Clock & Timing, Wireless, Communications & Networking, 时钟与计时, 无线
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
