796644-3

TE CONNECTIVITY / BUCHANAN  796644-3  引线座

3POS 5.0MM CE R/A HDR,TRM BLK

得捷:
TERM BLOCK HDR 3POS 90DEG 5MM

艾睿:

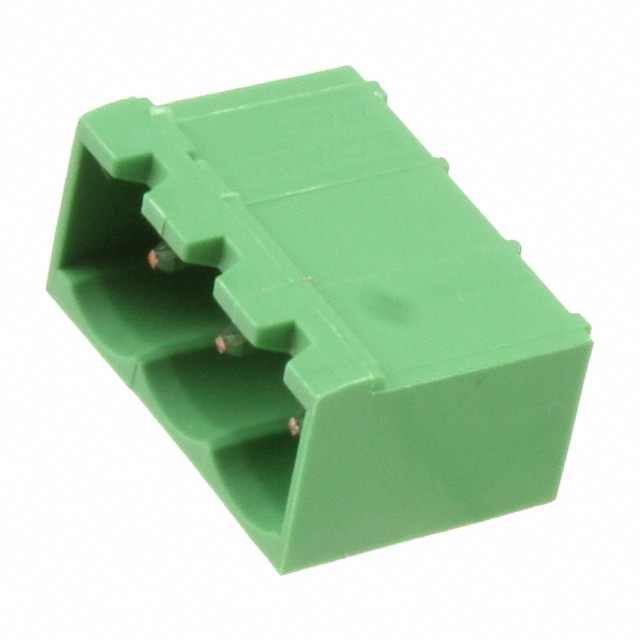

Easily mount this shrouded 796644-3 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 5 mm. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 300 VAC. It has a header type gender. This device has a maximum current rating of 15 A/contact. It uses the solder termination method. This product is 17 mm long, 8.35 mm tall and 12 mm deep. 796644-3 is housed in green polyamide 6/6.

安富利:
Conn Shrouded Header HDR 3 POS 5mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 3 POS 5mm Solder RA Thru-Hole Box

MASTER:
TERMI-BLOK HEADER ASSEMBLY, 90 DEGREE, CLOSED ENDS, 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
3POS 5.0MM CE R/A HDR,TRM BLK

Electro Sonic:
3POS 5.0MM CE R/A HDR,TRM BLK
