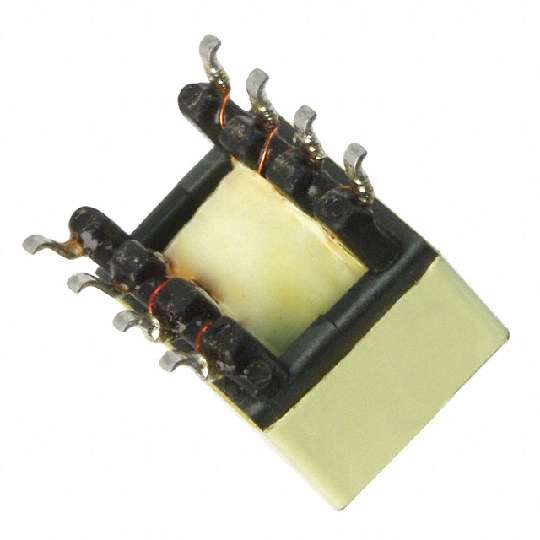

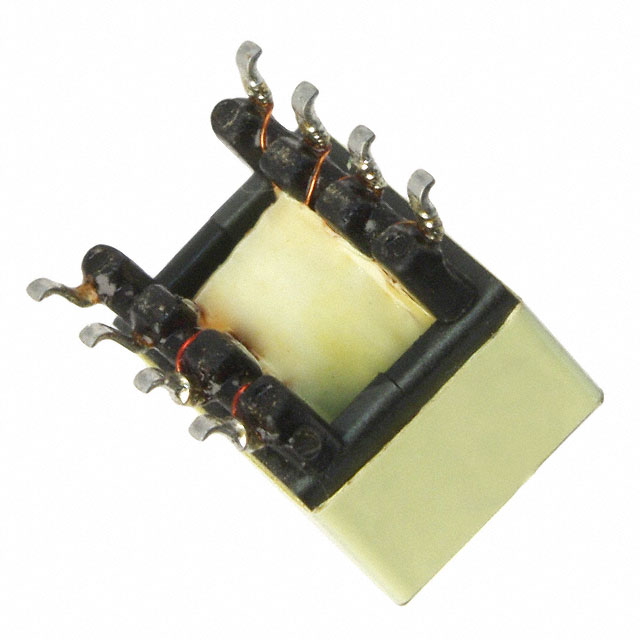

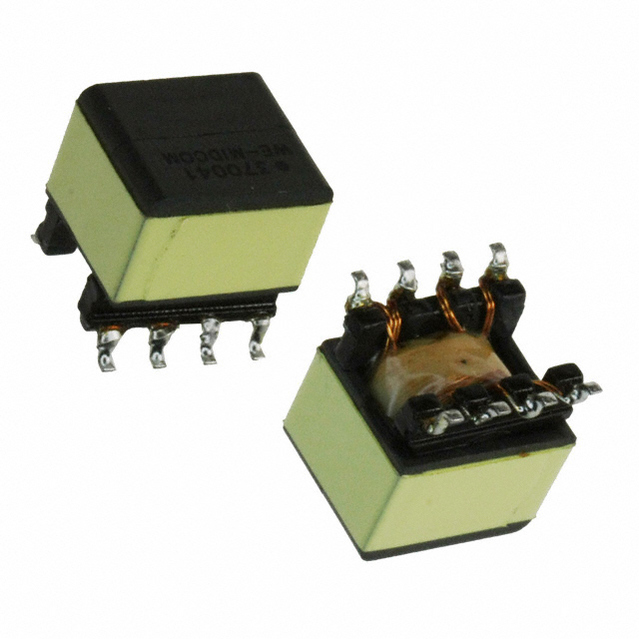

WURTH ELEKTRONIK 750310799 脉冲变压器, 反激, 3:3:1, 25 µH, 0.195 ohm, 1.5 kV
The is a Flyback Transformer for LT3573/LT3574/LT3575/LT3748. This transformer is used in isolated power design, sensor interfaces, isolated telecom converters and power over Ethernet applications.
输出电压 15.0 V
电感 25 µH
隔离电压 1.5 kV
电阻DC) 0.195 Ω
安装方式 Surface Mount
封装 9.78 mm x 9.14 mm x 10.54 mm
长度 9.78 mm
宽度 9.14 mm
高度 10.54 mm
封装 9.78 mm x 9.14 mm x 10.54 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络, 回扫转换器, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
