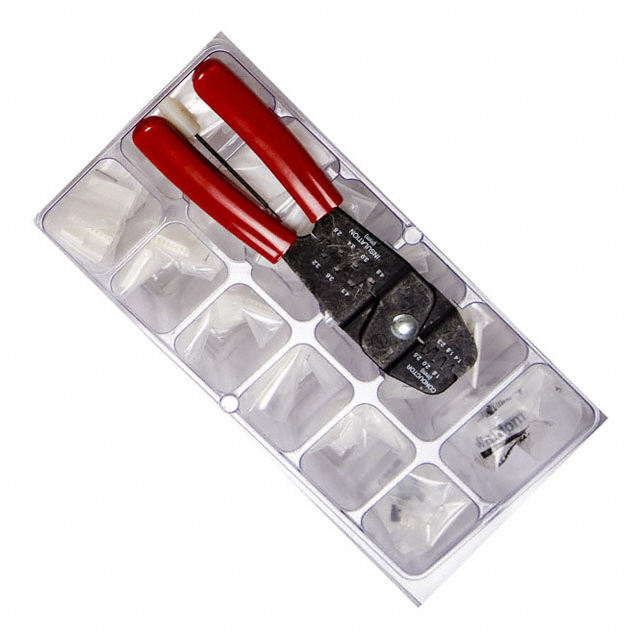

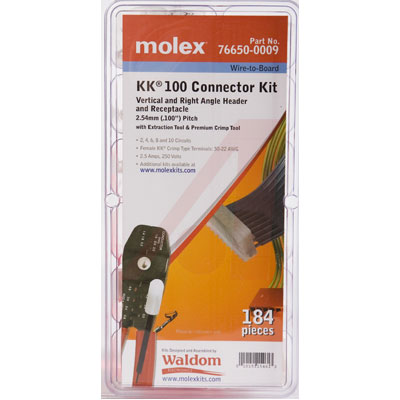

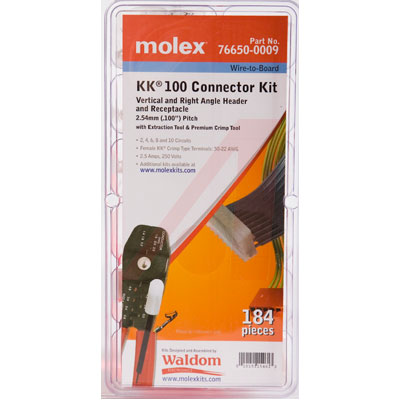

MOLEX 76650-0009 连接器套件, KK-100
**_0.100" Pitch KK Header Terminal Kit with Premium Tools_**
* 08-50-0114-C 863-0292 KK™ 100 Female Crimp Terminals, 30-22 AWG 100 Qty.
* 15-38-1024 863-0339 2.54mm 0.100" Pitch KK™ 100 Shunt/Jumper 2 Circuit 10 Qty.
* 22-01-2021 863-0388 2.54mm 0.100" Pitch KK™ 100 Receptacles 2 Circuit 12 Qty.
* 22-01-2041 863-0424 2.54mm 0.100" Pitch KK™ 100 Receptacles 4 Circuit 6 Qty.
* 22-01-2061 863-0484 2.54mm 0.100" Pitch KK™ 100 Receptacles 6 Circuit 6 Qty.
* 22-01-2081 863-0765 2.54mm 0.100" Pitch KK™ 100 Receptacles 8 Circuit 6 Qty.
* 22-01-2101 863-0629 2.54mm 0.100" Pitch KK™ 100 Receptacles 10 Circuit 6 Qty.
* 22-03-2021 863-0308 2.54mm 0.100" Pitch KK™ 100 Vertical Headers 2 Circuit 6 Qty.
* 22-03-2041 863-0309 2.54mm 0.100" Pitch KK™ 100 Vertical Headers 4 Circuit 3 Qty.
* 22-03-2061 863-0722 2.54mm 0.100" Pitch KK™ 100 Vertical Headers 6 Circuit 3 Qty.
* 22-03-2081 863-0733 2.54mm 0.100" Pitch KK™ 100 Vertical Headers 8 Circuit 3 Qty.
* 22-03-2101 863-0589 2.54mm 0.100" Pitch KK™ 100 Vertical Headers 10 Circuit 3 Qty.
* 22-05-2021 863-0825 2.54mm 0.100" Pitch KK™ 100 Right Angle Headers 2 Circuit 6 Qty.
* 22-05-2041 863-0826 2.54mm 0.100" Pitch KK™ 100 Right Angle Headers 4 Circuit 3 Qty.
* 22-05-2061 863-0827 2.54mm 0.100" Pitch KK™ 100 Right Angle Headers 6 Circuit 3 Qty.
* 22-05-2081 863-0630 2.54mm 0.100" Pitch KK™ 100 Right Angle Headers 8 Circuit 3 Qty.
* 22-05-2101 863-0675 2.54mm 0.100" Pitch KK™ 100 Right Angle Headers 10 Circuit 3 Qty.
* W-HT-1884 863-0515 Extraction Tool 1 Qty.
* 63811-1000 607-0204 Premium Crimping Tool 1 Qty.
