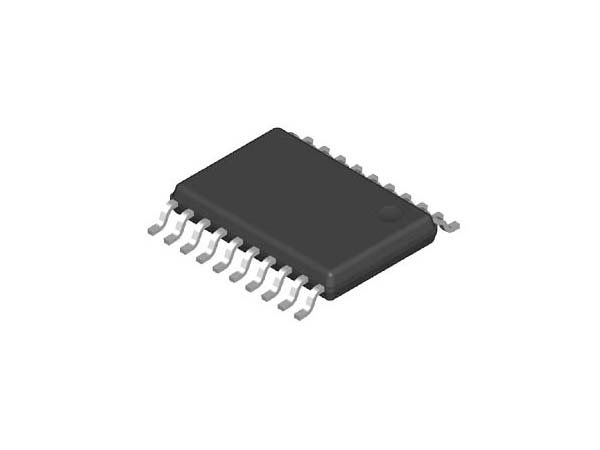

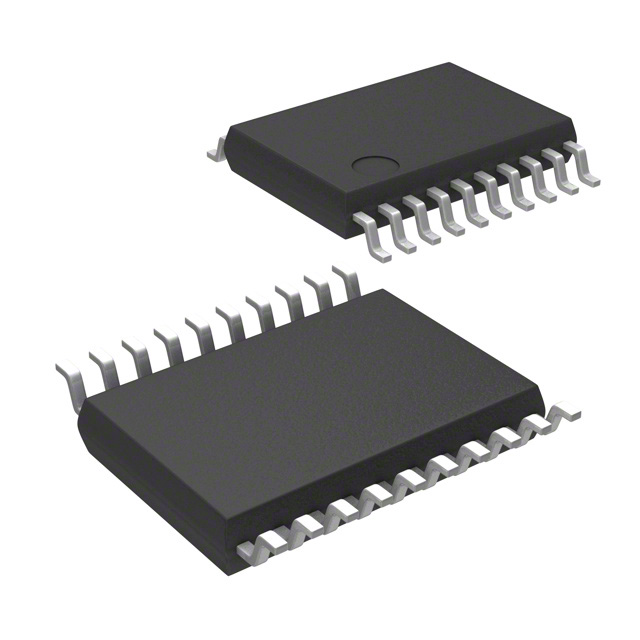

FAIRCHILD SEMICONDUCTOR 74VHC574MTCX 触发器, 三态, 正沿, D, 180 MHz, TSSOP, 20 引脚
Semiconductor"s flip flop device will allow you to easily build and test a circuit based on the state information provided. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
频率 180 MHz
电源电压DC 2.00V min
输出接口数 8
电路数 8
针脚数 20
时钟频率 115 MHz
位数 8
极性 Non-Inverting
输入电容 4 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
