74VHCT08AMTCX

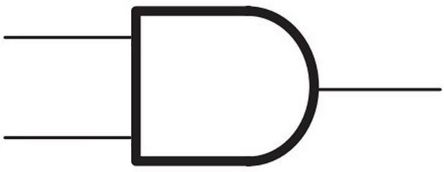

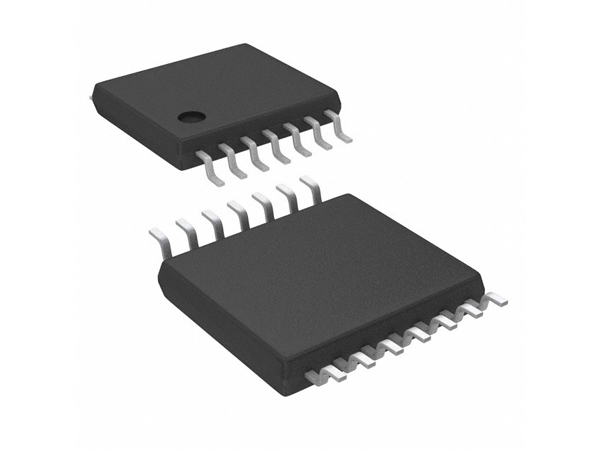

74VHCT 系列 5 V 高速 CMOS 四路 双输入 与门 - TSSOP-14

The is an advanced high speed CMOS quad 2-input AND Gate fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 4 stages including buffer output, which provide high noise immunity and stable output. Protection circuits ensure that 0 to 7V can be applied to the input pins without regard to the supply voltage and to the output pins with VCC = 0V. These circuits prevent device destruction due to mismatched supply and input/output voltages. This device can be used to interface 3 to 5V systems and two supply systems such as battery backup.

.

5ns Propagation delay tPD

.

Power down protection is provided on all inputs

.

0.8V Maximum low noise VOLP

.

2µA Maximum low power dissipation ICC

.

VIH = 2V, VIL = 0.8V High noise immunity

.

Pin and function compatible with 74HCT08
