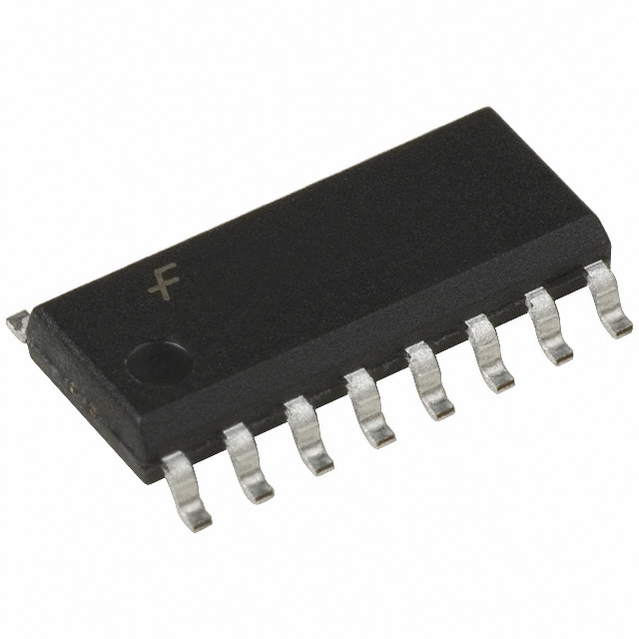

FAIRCHILD SEMICONDUCTOR 74VHC4040MX 芯片, 二进制计数器, 12位, 210MHZ, NSOIC-16
Do you have multiple logical states? Implement this binary counter shift register by Semiconductor in order to switch and maintain states. This counter shift register has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V min
输出接口数 12
电路数 1
针脚数 16
时钟频率 210 MHz
位数 12
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

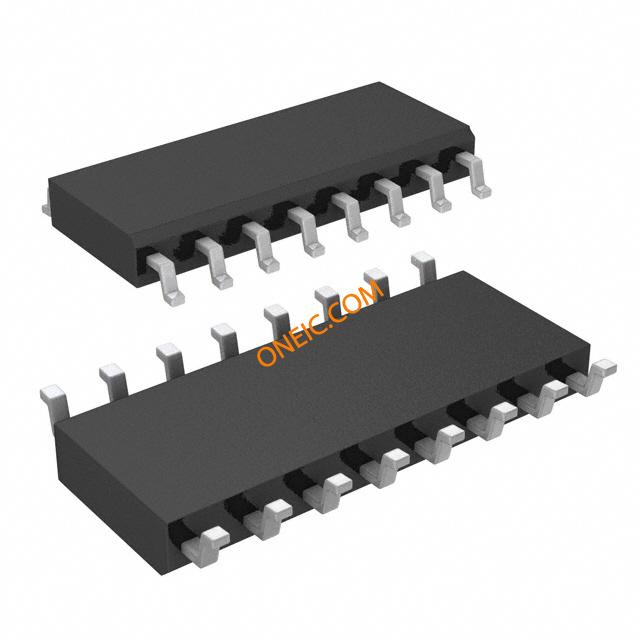

封装 SOIC-16
宽度 4 mm
高度 1.5 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
