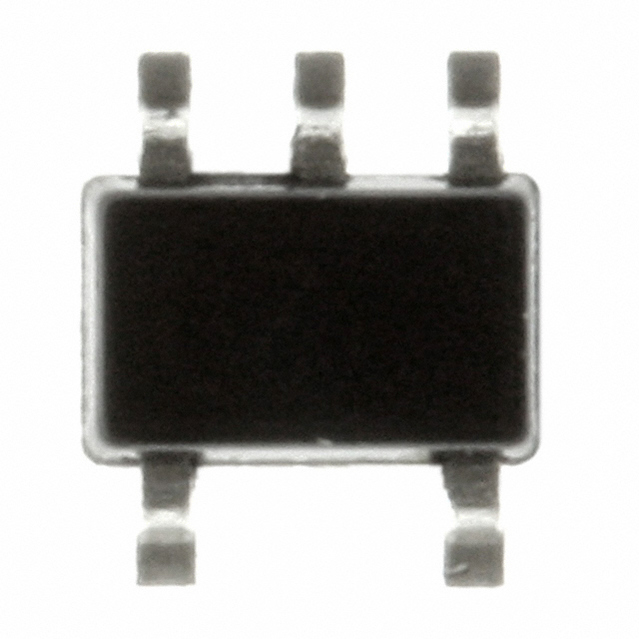

STMICROELECTRONICS 74LX1G07CTR 逻辑芯片, 74LX1G, 缓冲器, SOT323-5
Leading the input to the transmission line this buffer and line driver by STMicroelectronics will amplify digital and analog signals. With an open drain output, this is power management at its best. This line driver has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has 1 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V min
输出接口数 1
通道数 1
针脚数 5
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5
封装 SOT-323-5
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-5
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
