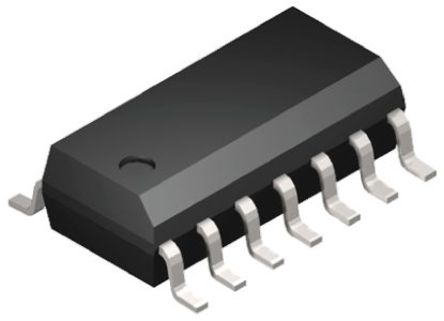

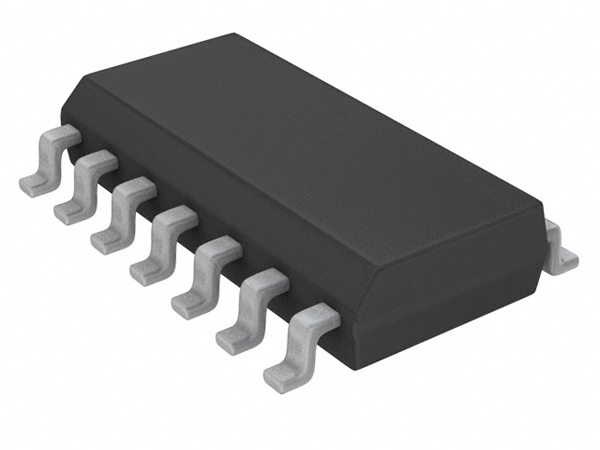

FAIRCHILD SEMICONDUCTOR 74LVX74M 触发器, D, 8.2 ns, 145 MHz, 4 mA, SOIC, 14 引脚
Semiconductor"s flip flop device will allow you to easily build and test a circuit based on the state information provided. It has a differential output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. It has 2 channels per chip.
频率 145 MHz
电源电压DC 3.30 V, 3.60 V max
输出电流 4 mA
电路数 2
通道数 2
针脚数 14
时钟频率 85 MHz
位数 2
极性 Non-Inverting, Inverting
逻辑门个数 2
输入电容 4 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
重量 0.0038559889924 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
