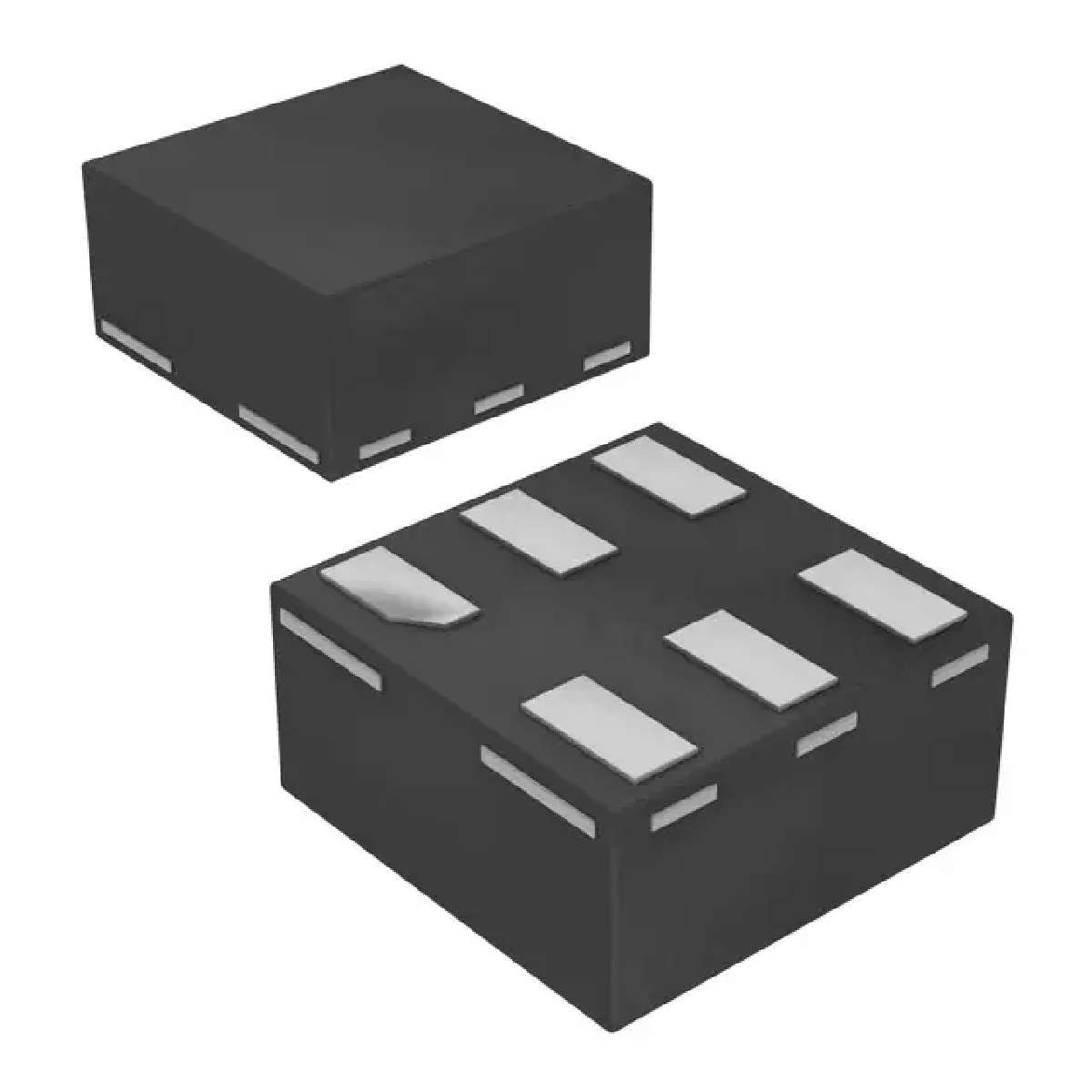

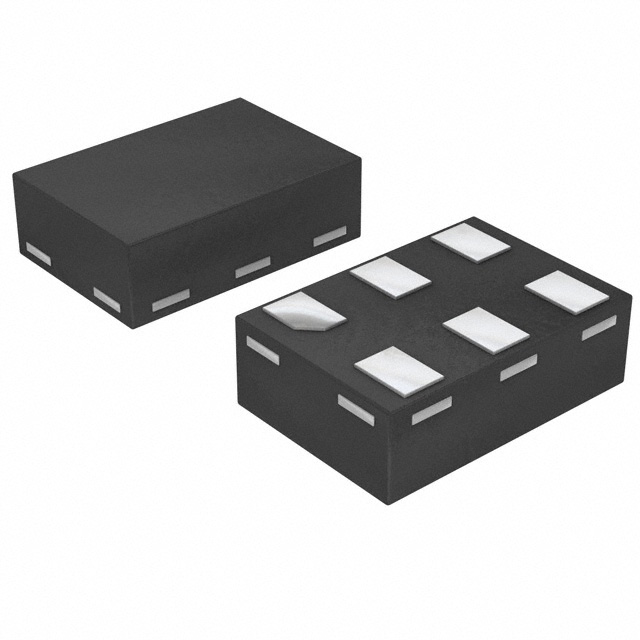

74LVC1G3157GS,132

NXP  74LVC1G3157GS,132  芯片, 模拟多路复用器/信号分离器, 单路, 2X1, XSON-6

The 74LVC1G3157GS is an Analog Multiplexer/Demultiplexer with one digital select input S, two independent inputs/outputs Y0, Y1 and a common input/output Z. Schmitt trigger action at the select input makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 to 5.5V.

.

Very low ON resistance - 7.5R, 6.5R, 6R typical at VCC = 2.7V, 3.3V, 5V respectively

.

Switch current capability of 32mA

.

Break-before-make switching

.

High noise immunity

.

CMOS low power consumption

.

TTL interface compatibility at 3.3V

.

Latch-up performance meets requirements of JESD 78 Class I

.

ESD protection - HBM JESD22-A114F <2000V, MM JESD22-A115-A <200V
