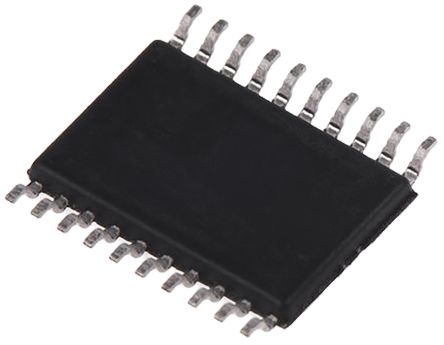

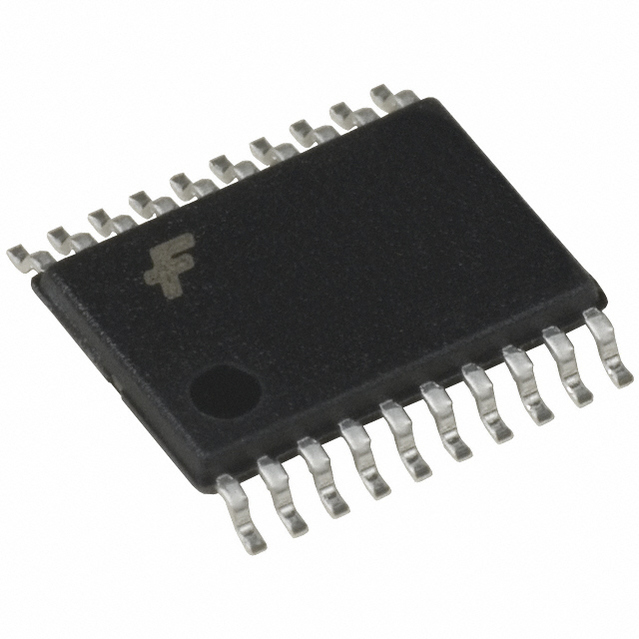

74LCX244MTCX

74LCX 系列 高级 3.3 V CMOS 20 TSSOP 八 总线缓冲器 3 态

The is a low voltage non-inverting Buffer/Line Driver with 3-state outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX244 is designed for low voltage 2.5 or 3.3V VCC applications with capability of interfacing to a 5V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

.

Power down high impedance inputs and outputs

.

Implements patented noise/EMI reduction circuitry

.

Latch-up performance exceeds 500mA

.

5V Tolerant inputs and outputs

.

6.5ns Propagation delay tpd, 10µA ICCQ maximum

.

±24mA Output drive

.

Supports live insertion/withdrawal
