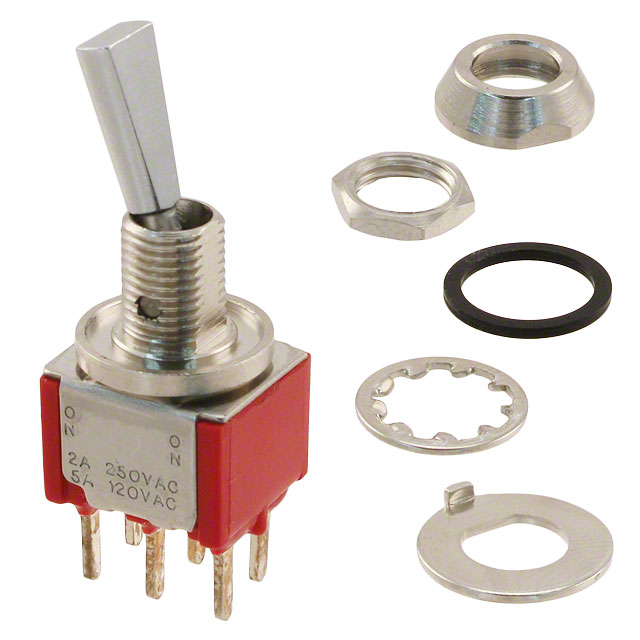

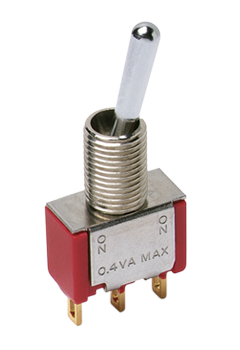

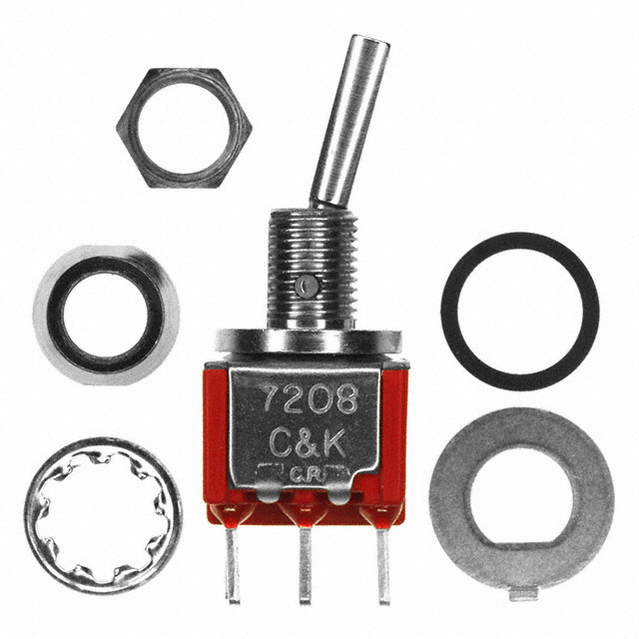

7208P3CWCQE

拨动开关 ON None Mom DPDT 5A 250VAC 28VDC

The toggle switch from C&K Components is a simple way to power on and off various components of your application. This device has a maximum current rating of 5 A @ 120VAC 28VDC. It has a DPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The 7208P3CWCQE toggle switch has a PC pin termination style. This product is 12.7 mm long, 31.37 mm tall and 11.81 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.
