74LCX 系列,Fairchild Semiconductor高级高速(低电压)CMOS 逻辑 工作电压范围:2.0 至 3.6V 5V 容差输入和输出 ### 74LCX 系列
The is a low voltage non-inverting Buffer/Line Driver with 3-state outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX244 is designed for low voltage 2.5 or 3.3V VCC applications with capability of interfacing to a 5V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
电源电压DC 2.00V min
输出接口数 8
通道数 8
针脚数 20
位数 8
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20

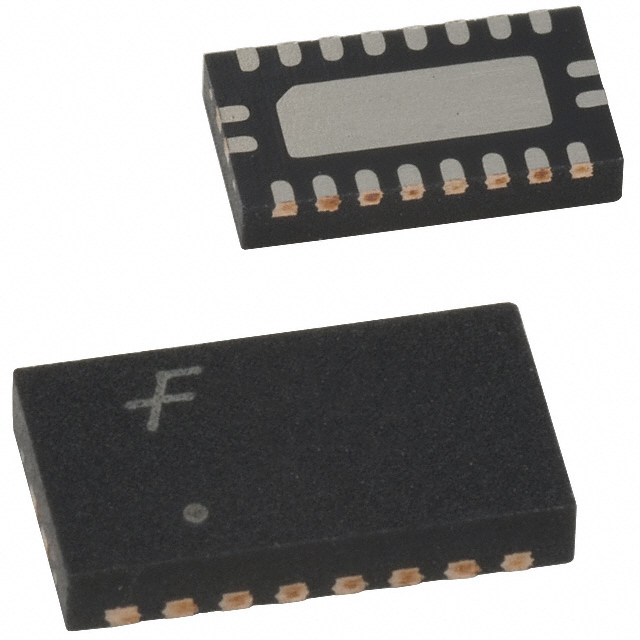

封装 DQFN-20
长度 4.5 mm
宽度 2.5 mm
高度 0.75 mm
封装 DQFN-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
