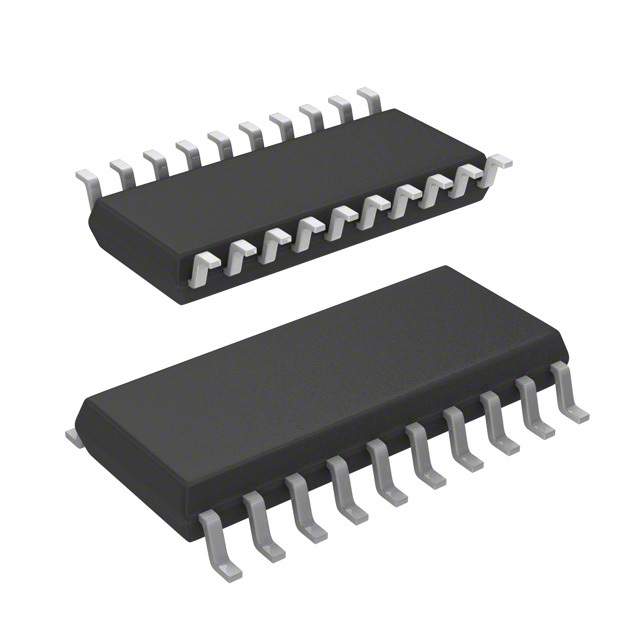

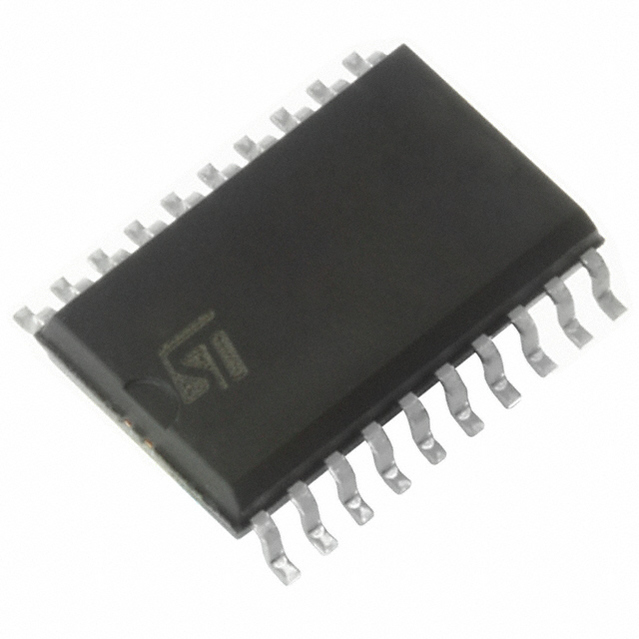

STMICROELECTRONICS 74LCX541MTR 芯片, 逻辑芯片 - 74LCX, 缓冲器
Description
The 74LCX541 is a low voltage CMOS octal bus buffer non-inverted fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs.
Features
■ 5V tolerant inputs and outputs
■ High speed:
– tPD = 8.0ns Max at VCC = 3V
■ Power down protection on inputs and outputs
■ Symmetrical output impedance:
– |IOH| = IOL = 24mA Min at VCC = 3V
■ PCI bus levels guaranteed at 24mA
■ Balanced propagation delays:
– tPLH = tPHL
■ Operating voltage range:
– VCC Opr = 2.0V to 3.6V
■ Pin and function compatible with 74 series 541
■ Latch-up performance exceeds 500mA JESD 17
■ ESD performance:
– HBM > 2000V MIL STD 883 method 3015; MM > 200V
电源电压DC 3.60V max
输出接口数 8
电路数 8
通道数 8
针脚数 20
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
宽度 7.6 mm
高度 2.45 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
