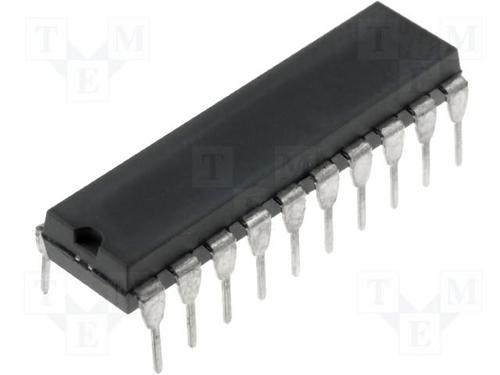

74HCT574N

NXP  74HCT574N  触发器, D, 18 ns, 123 MHz, 6 mA, DIP, 20 引脚

The is a 8-bit positive-edge triggered D-type Flip-flop with 3-state outputs. The device features a clock and OE\ inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the low-to-high clock transition. A high on OE\ causes the outputs to assume a high-impedance OFF-state. Operation of the OE\ input does not affect the state of the flip-flops. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

.

Complies with JEDEC standard no. 7A

.

TTL Input levels
