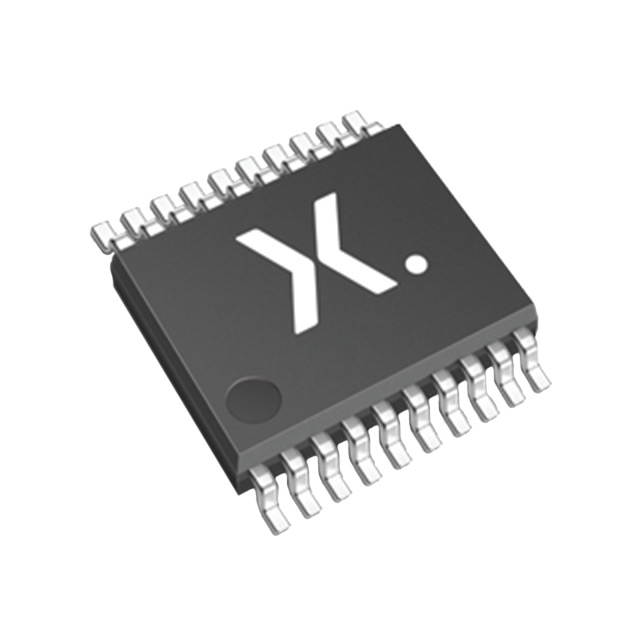

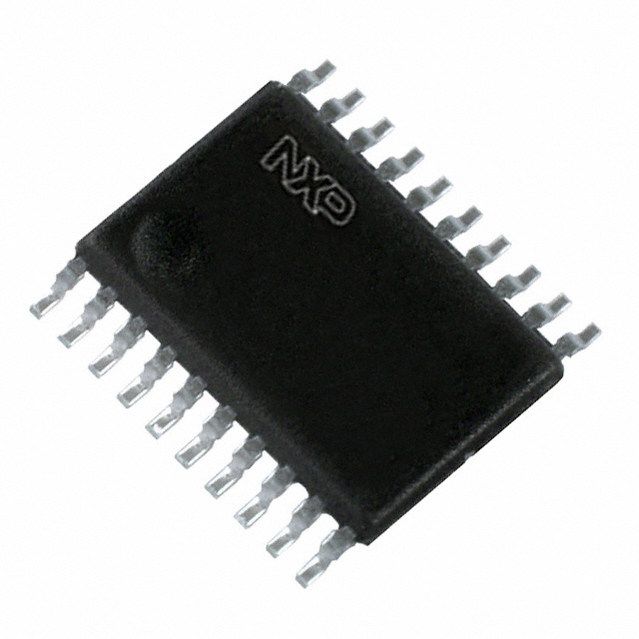

NXP 74HC574PW,118 触发器, 三态非反相, 正沿, D, 123 MHz, 35 mA, TSSOP, 20 引脚
The 74HC574PW is a 8-bit positive-edge triggered D-type Flip-flop with 3-state outputs. The device features a clock and OE\ inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the low-to-high clock transition. A high on OE\ causes the outputs to assume a high-impedance OFF-state. Operation of the OE\ input does not affect the state of the flip-flops. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- .
- Complies with JEDEC standard no. 7A
- .
- CMOS Input levels
频率 123 MHz
电源电压DC 2.00V min
输出接口数 8
输出电流 35 mA
电路数 1
通道数 8
针脚数 20
时钟频率 133 MHz
位数 8
输入电容 3.5 pF
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
宽度 4.5 mm
高度 0.95 mm
封装 TSSOP-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 消费电子产品, Consumer Electronics, 时钟与计时, Communications & Networking, Embedded Design & Development, Industrial, 嵌入式设计与开发, Computers & Computer Peripherals, Clock & Timing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
74HC574PW,118 NXP 恩智浦 | 当前型号 | 当前型号 |
74HC574PW,112 恩智浦 | 完全替代 | 74HC574PW,118和74HC574PW,112的区别 |
SN74HC574PWR 德州仪器 | 功能相似 | 74HC574PW,118和SN74HC574PWR的区别 |
SN74HC574PW 德州仪器 | 功能相似 | 74HC574PW,118和SN74HC574PW的区别 |
