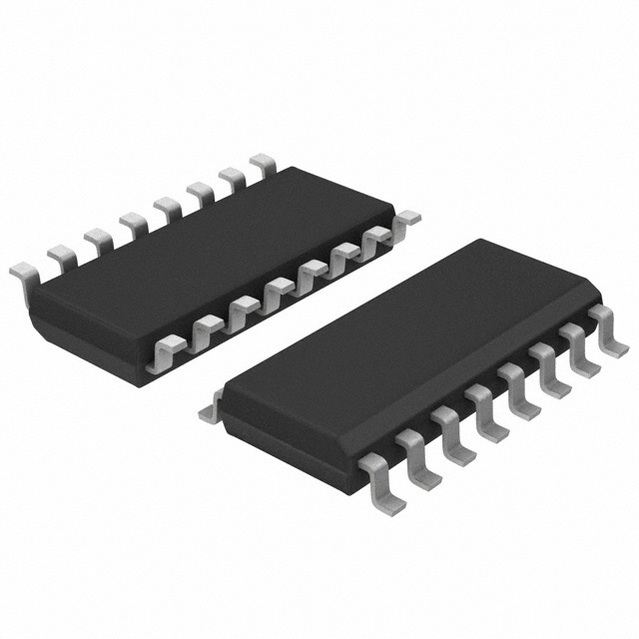

NXP 74HC4040D,653 芯片, 二进制纹波计数器, 12位, 98MHZ, SOIC16
The 74HC4040D is a 12-stage Binary Ripple Counter with a clock input CP\\, an overriding asynchronous master reset input MR and twelve parallel outputs Q0 to Q11. The counter advances on the high-to-low transition of CP\\. A high on MR clears all counter stages and forces all outputs low, independent of the state of CP\\. Each counter stage is a static toggle flip-flop. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
电源电压DC 2.00V min
输出接口数 12
针脚数 16
时钟频率 98 MHz
位数 12
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
高度 1.45 mm
封装 SOIC-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Computers & Computer Peripherals, Consumer Electronics, Clock & Timing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74HC4040D,653 NXP 恩智浦 | 当前型号 | 当前型号 |
74HC4040D,652 恩智浦 | 类似代替 | 74HC4040D,653和74HC4040D,652的区别 |
SN74HC4040DR 德州仪器 | 功能相似 | 74HC4040D,653和SN74HC4040DR的区别 |
MC74HC4040ADG 安森美 | 功能相似 | 74HC4040D,653和MC74HC4040ADG的区别 |
