74HC4040PW,118

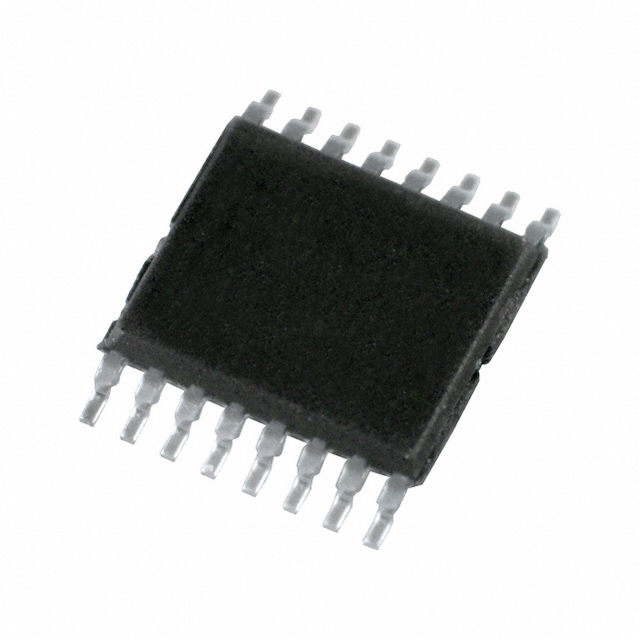

NXP  74HC4040PW,118  芯片, 纹波二进制计数器, 90MHZ, TSSOP-16

The 74HC4040PW is a 12-stage Binary Ripple Counter with a clock input CP\\, an overriding asynchronous master reset input MR and twelve parallel outputs Q0 to Q11. The counter advances on the high-to-low transition of CP\\. A high on MR clears all counter stages and forces all outputs low, independent of the state of CP\\. Each counter stage is a static toggle flip-flop. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.

.

CMOS Input levels

.

Complies with JEDEC standard No. 7A
