74AVCH16T245EV,518概述
NXP 74AVCH16T245EV,518 收发器, 转换, 800 mV至3.6 V, VFBGA-56
The Semiconductors level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
74AVCH16T245EV,518中文资料参数规格
技术参数
电源电压DC 3.60V max
电路数 2
通道数 16
针脚数 56
位数 16
工作温度Max 125 ℃
工作温度Min -40 ℃
输出通道数 8
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
封装参数
安装方式 Surface Mount
引脚数 56

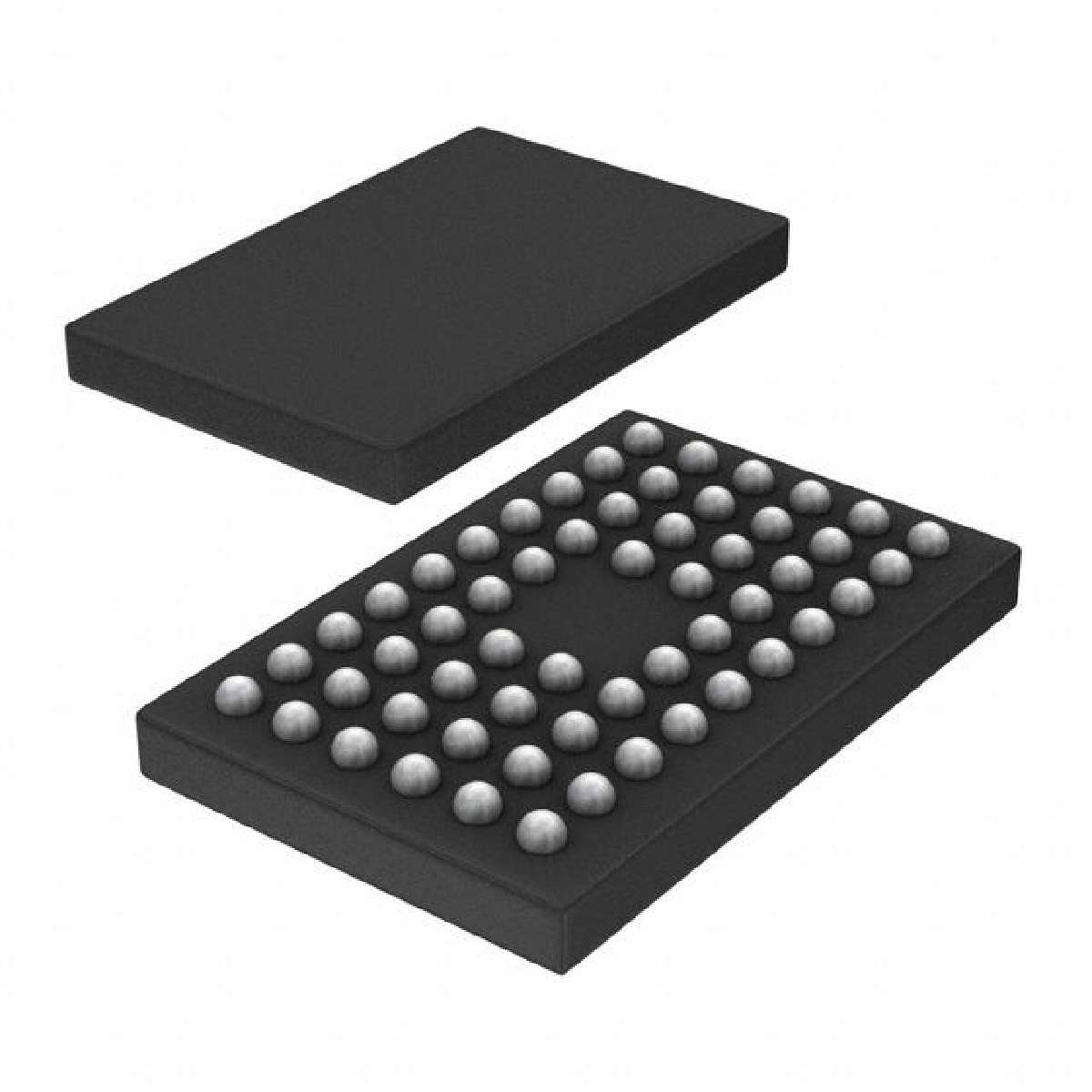

封装 VFBGA-56
外形尺寸
高度 0.7 mm
封装 VFBGA-56
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Cut Tape CT
符合标准
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
