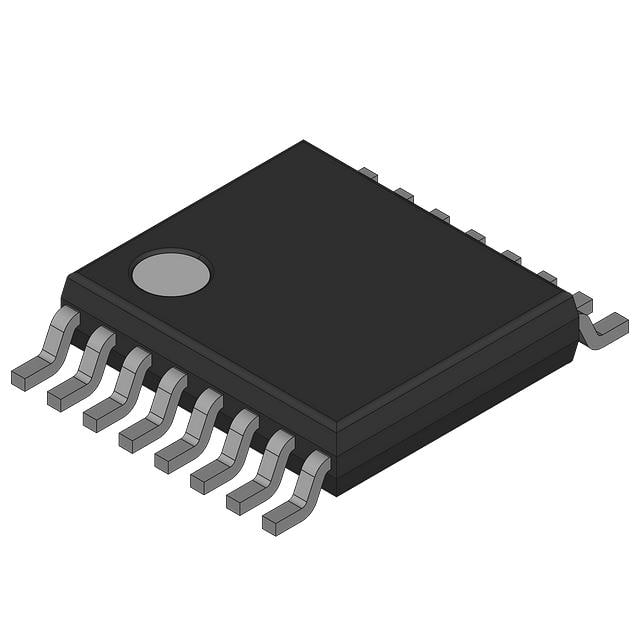

NXP 74AHCT139PW,118 芯片, 解码器/信号分离器, 双路, 2:4, TSSOP
Safety is important to allow for products to safely fail, implement this from Semiconductors to decode multiplexed or non-binary data. This decoder has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V min
输出接口数 8
针脚数 16
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
高度 0.95 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
