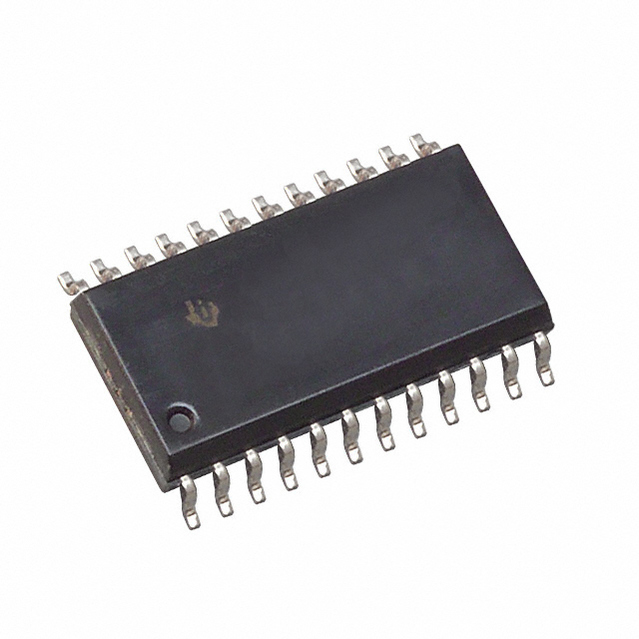

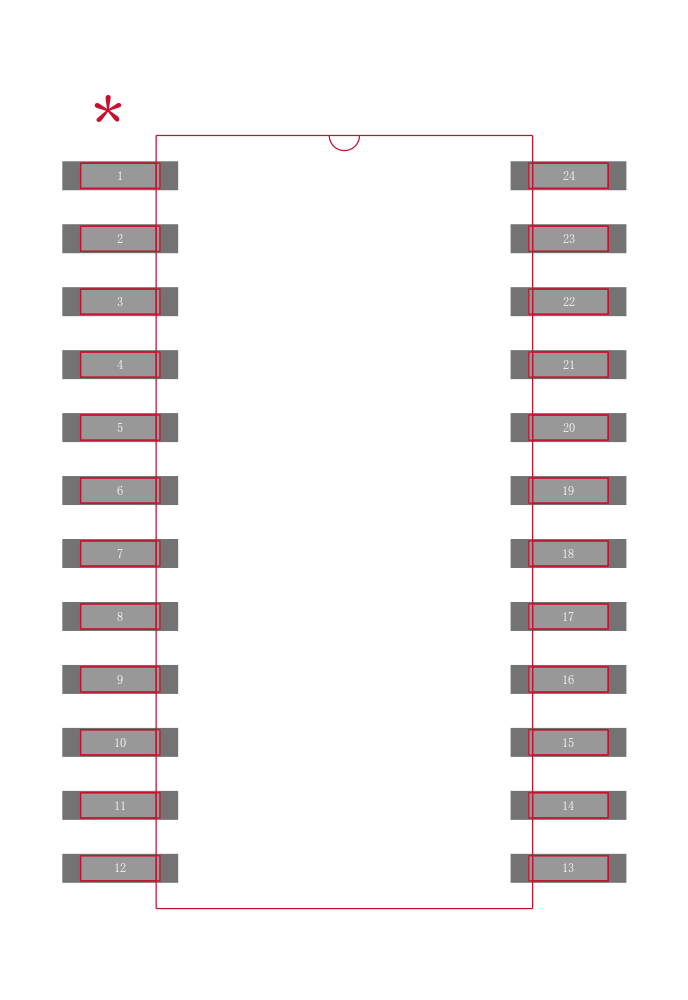

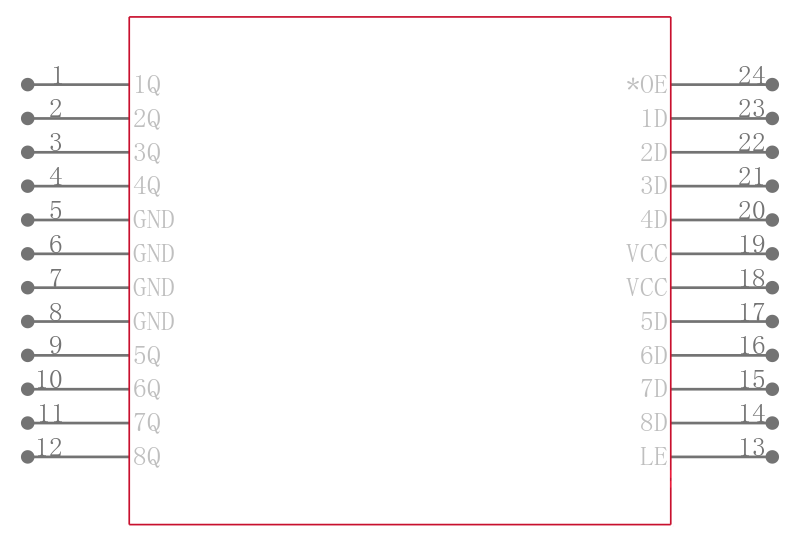

TEXAS INSTRUMENTS 74ACT11373DW 逻辑芯片, 八路D型锁存器, 24SOIC
The is an Octal Transparent D-type Latch with 3-state outputs. It is designed specifically for driving highly-capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers. The eight latches of the 74ACT11373 are transparent D-type latches. While the LE input is high, the Q outputs follow the data D inputs. When the enable is taken low, the Q outputs are latched at the levels that were set up at the D inputs. A buffered OE\ input can be used to place the eight outputs in either a normal logic state high or low logic levels or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impendence third state and increased drive provide the capability to drive the bus lines in a bus-organized system without need for interface or pull-up components.
频率 1.00 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 24 mA
电路数 8
针脚数 24
位数 8
传送延迟时间 11.8 ns
极性 Non-Inverting
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24
封装 SOIC-24
高度 2.35 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
