744310150概述

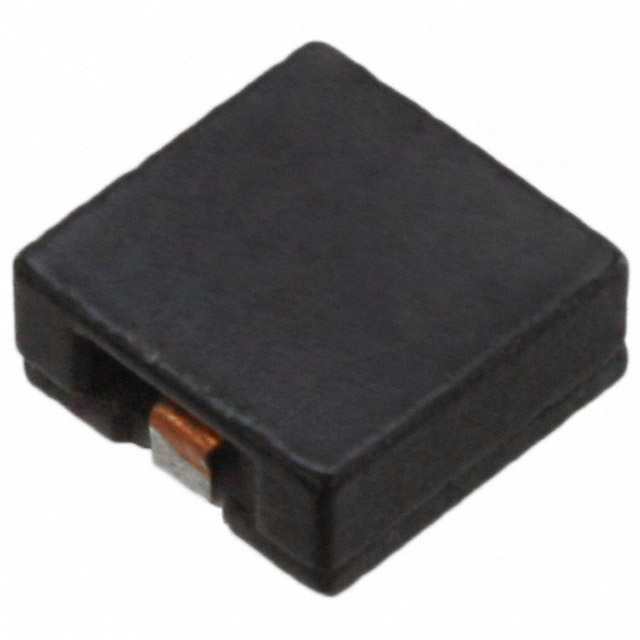

WURTH ELEKTRONIK  744310150  表面贴装功率电感器, WE-HCI系列, 1.5 µH, ± 20%, 屏蔽, 0.0127 ohm, 7.5 A

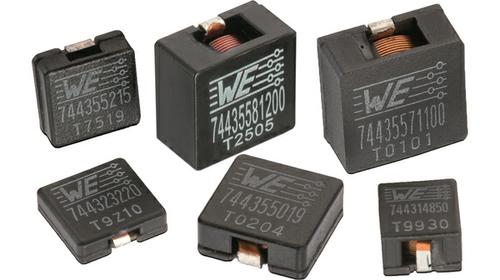

WE-HCI series is known within the electronics market to be the top of the line, high-current inductor family. Due to increased demand for smaller packages in even higher currents, Wurth Electronics offers numerous sizes ranging from 5x5x4 mm up to 22x22x12 mm, thus allowing you to find the optimum size for your circuit design. The high-current flat wire inductors offer the industry"s lowest DCRs for maximum performance in your DC/DC converter.

.
Magnetically shielded
.
Flat wire coil for low losses at high frequency
.
Low stray field
.
Operating temperature: -40°C to +125°C / +150°C / +155°C
.
Recommended solder profile: Reflow
744310150中文资料参数规格
技术参数

额定电流 7.5 A

容差 ±20 %

电感 1.5 µH

自谐频率 80 MHz

产品系列 WE-HCI

电感公差 ±20 %

测试频率 100 kHz

电阻DC) 12.7 mΩ

电阻DC Max 0.0127 Ω

封装参数

安装方式 Surface Mount

封装 7mm x 6.9mm x 3mm

外形尺寸

宽度 6.9 mm

封装 7mm x 6.9mm x 3mm

物理参数

工作温度 -40℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

数据手册

在线购买744310150
型号: 744310150
描述:WURTH ELEKTRONIK  744310150  表面贴装功率电感器, WE-HCI系列, 1.5 µH, ± 20%, 屏蔽, 0.0127 ohm, 7.5 A
