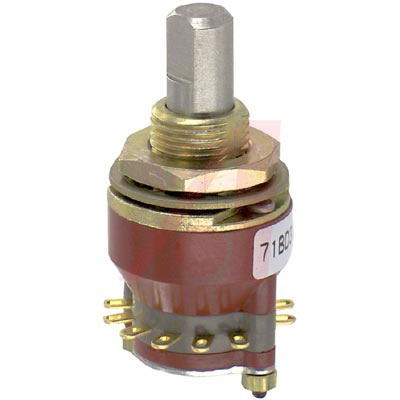

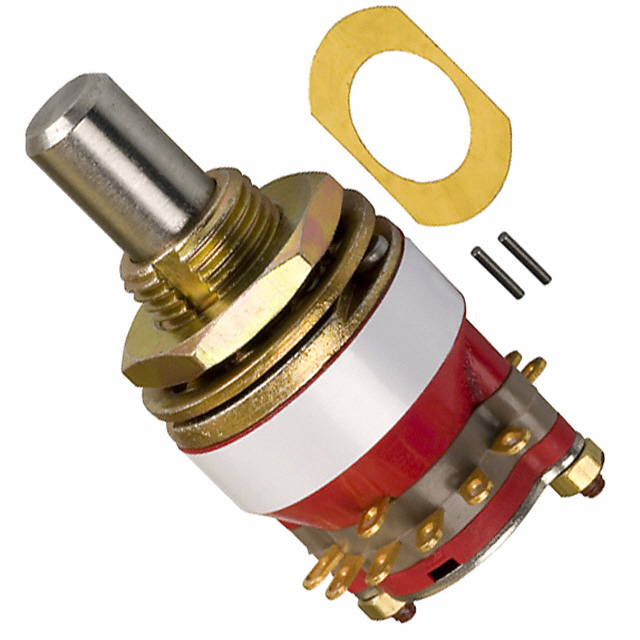

GRAYHILL 71BD30-01-1-AJN 旋转开关, 71系列, 不发光, 30 °, 300 mA, 300 mA, 115 V
The 71 series Multi-deck Rotary Switch has extremely rugged construction and virtually limitless configurations. It is qualified to MIL-DTL-3786/39. The series 71 rotary switch qualification includes the 30° and the 36° angles of throw 0.125- and 0.25-inch diameter shafts, with solder lug terminals and printed circuit terminals, in sealed and unsealed style switches.
- .
- Performance and value leader
- .
- Moulded-in position terminals
- .
- Choice of shaft/bushing diameters 30° and 36° angles of throw
- .
- Military qualified MIL-DTL-3786/39
触点电镀 Gold
额定电压DC 30 V
额定电压AC 125 V
额定电流 250 mA
绝缘电阻 1.00 GΩ
方向 Vertical
触点类型 SPDT
针脚数 12
位数 1
接触电阻 50.0 mΩ
额定电流Max 0.3A @115VAC
额定电压 115 VAC
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 DIP
长度 19.05 mm
宽度 19.05 mm
高度 36.78 mm
直径 17.5 mm
封装 DIP
触点材质 Silver Alloy
产品生命周期 Active
制造应用 Aerospace, Defence, Military, 军用与航空, 工业, Industrial, 国防, Defence, Military & Aerospace, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509020
