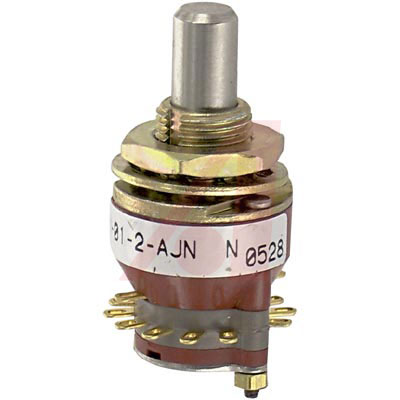

GRAYHILL 71BD30-01-2-AJN 旋转开关, 71系列, 不发光, 30 °, 300 mA, 300 mA, 115 V
The is a double-pole 6-position 1-deck Rotary Switch with adjustable stop. The 71 series switch is made up of diallyl per MIL-M-14 ASTM-D-5948 cover, base and deck separator, thermoplastic rotor mounting plate, tin/zinc-plated zinc casting bushing, silver alloy and beryllium copper rotor contact and gold-plated brass terminals.
- .
- Performance and value leader
- .
- Moulded-in position terminals
- .
- 50mR Maximum contact resistance
- .
- 1000MR Minimum insulation resistance
触点电镀 Gold
额定电流 0.25 A
绝缘电阻 1.00 GΩ
方向 Vertical
触点类型 SPDT
针脚数 6
位数 2
接触电阻 50.0 mΩ
额定电流Max 0.3A @115VAC
额定电压 115 VAC
接触电阻Max 50 mΩ
安装方式 Solder Lug, Panel
封装 300
长度 19.05 mm
宽度 19.05 mm
高度 36.78 mm
直径 17.4 mm
封装 300
触点材质 Silver Alloy
产品生命周期 Active
制造应用 工业, 军用与航空, Aerospace, Defence, Military, 国防, Industrial, 国防, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509020
