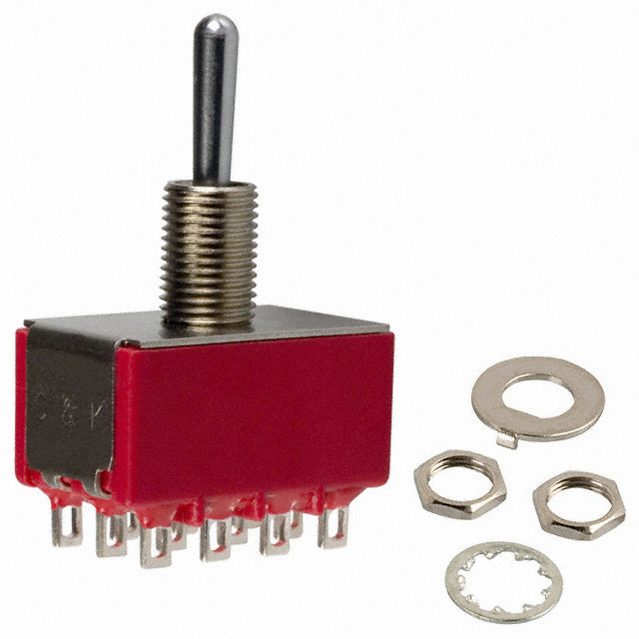

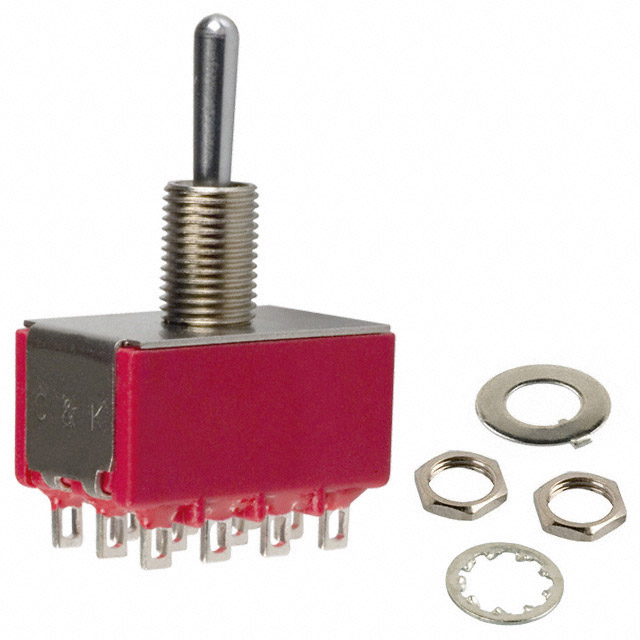

Switch Toggle ON ON Mom DP3T Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Miniature Toggle Switch
立创商城:
7413SYZQE
艾睿:
Switch Toggle ON ON Mom DP3T Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Bulk
Chip1Stop:
Switch Toggle ON ON Mom 4PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Verical:
Switch Toggle ON ON Mom DP3T Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
MASTER:
Miniature Toggle Switch
Electro Sonic:
Miniature Toggle Switch
触点电镀 Silver
额定电流 5.00 A
排数 4
触点类型 4PDT
绝缘 Epoxy
额定电流Max 5A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Lug, PCB
封装 -
长度 12.7 mm
高度 34.04 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 40000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
