74AUP2G157GM,125

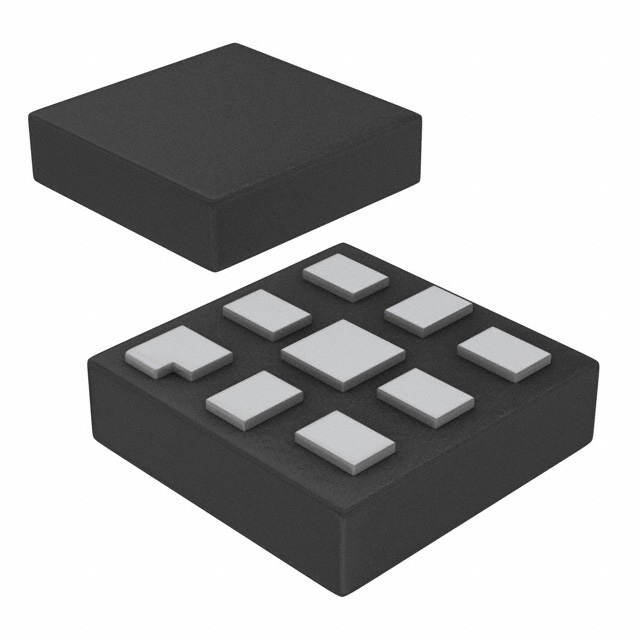

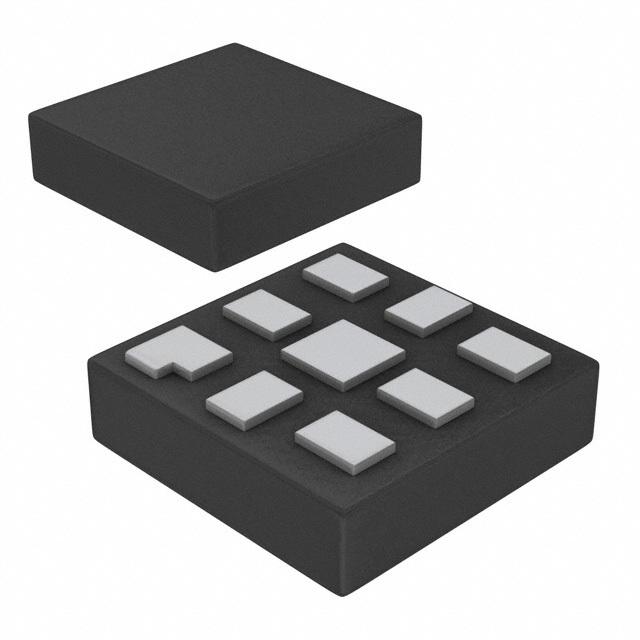

74AUP2G157 系列 0.8 - 3.6 V 单通道 双输入 多路复用器 - XQFN-8U

* Wide supply voltage range from 0.8 V to 3.6 V * High noise immunity * Complies with JEDEC standards: * JESD8-12 0.8 V to 1.3 V * JESD8-11 0.9 V to 1.65 V * JESD8-7 1.2 V to 1.95 V * JESD8-5 1.8 V to 2.7 V * JESD8-B 2.7 V to 3.6 V * ESD protection: * HBM JESD22-A114F Class 3A exceeds 5000 V * MM JESD22-A115-A exceeds 200 V * CDM JESD22-C101E exceeds 1000 V * Low static power consumption; Icc = 0.9 µA maximum * Latch-up performance exceeds 100 mA per JESD 78 Class II * Inputs accept voltages up to 3.6 V * Low noise overshoot and undershoot * Ioff circuitry provides partial Power-down mode operation * Multiple package options * Specified from -40 °C to +85 °C and -40 °C to +125 °C
