四路2号线到1线数据选择器/复用器，具有三态输出 QUADRUPLE 2-LINE TO 1-LINE DATA SELECTOR/MULTIPLEXER WITH 3-STATE OUTPUTS
Do you want to reduce the number of electrical lines within your project? The multiplexer from Texas Instruments can easily forward a selected input into a single line. This multiplexer has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. It is made in a 4 x 2:1 configuration. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 3 V, while its maximum is 5.5 V.
电源电压DC 3.00V ~ 5.50V
电路数 4
通道数 4
位数 4
电压波节 5.00 V, 3.30 V
带宽 100 MHz
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount

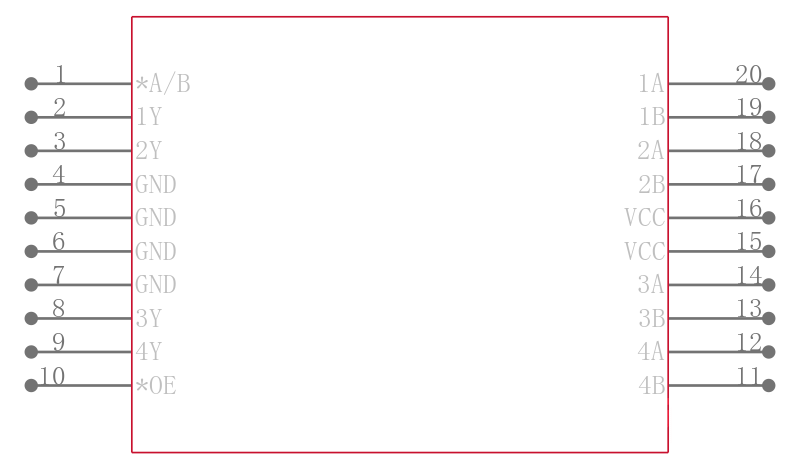

引脚数 20

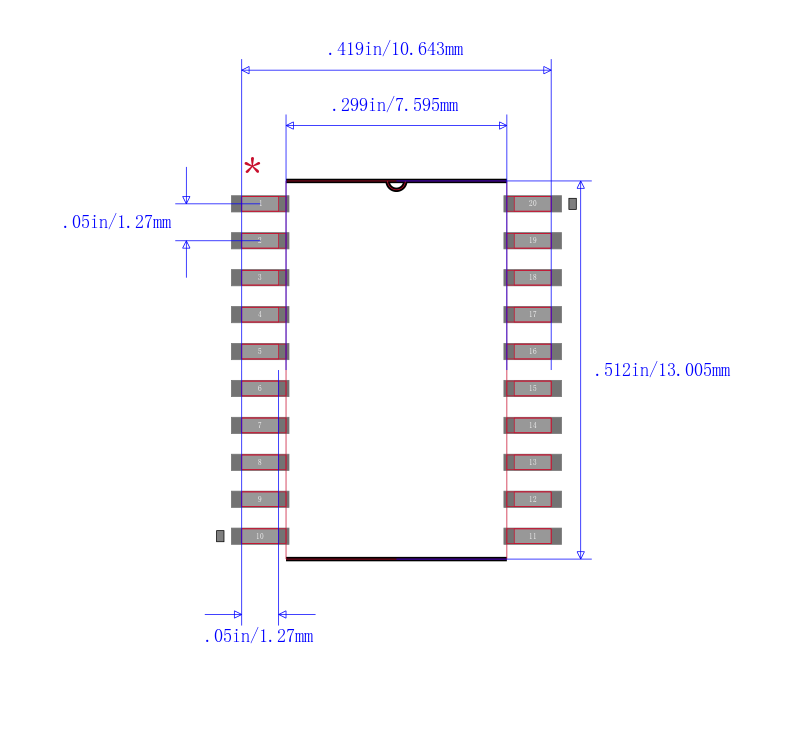

封装 SOIC-20
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
