74LCX04MTCX

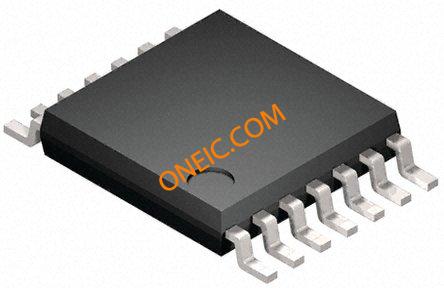

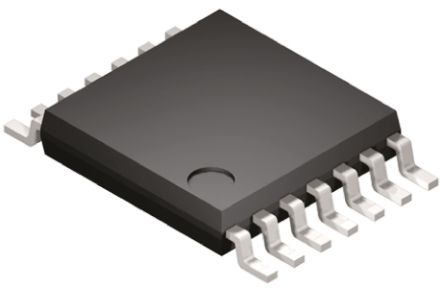

FAIRCHILD SEMICONDUCTOR  74LCX04MTCX  非门, 1输入, 24 mA, 2V至3.6V, TSSOP-14

The is a low voltage Hex Inverter with 5V tolerant input contains six circuits. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The device is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

.

5.2ns Propagation delay tPD

.

10µA ICC Maximum

.

Power down high impedance inputs and outputs

.

±24mA Output drive

.

Implements patented noise/EMI reduction circuitry

.

Latch-up performance exceeds JEDEC 78 conditions

.

ESD performance - Human body model >2000V Machine model >200V
