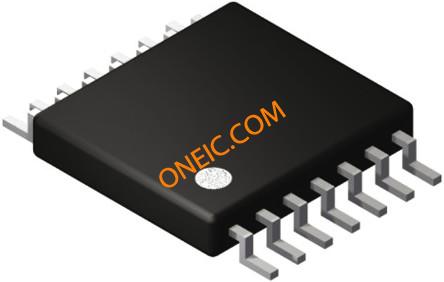

FAIRCHILD SEMICONDUCTOR 74AC14MTCX 非门, AC系列, 施密特触发, 1输入, 24 mA, 2V至6V, TSSOP-14
The is a Hex Inverter with Schmitt-trigger input device contain six inverter gates each with a Schmitt-trigger input. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, the device have a greater noise margin than conventional inverter. The device has hysteresis between the positive-going and negative-going input thresholds typically 1.0V, which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
电源电压DC 4.00 V
输出电流 24 mA
电路数 6
针脚数 14
逻辑门个数 6
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
