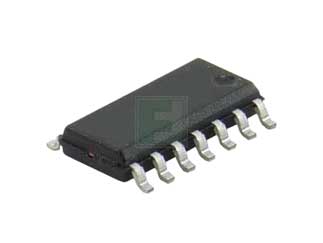

74AC86 系列 6 V 表面贴装 四路 双输入 异或门 - SOIC-14
Semiconductor"s logic gates will allow you to implement basic logic functions within your electronic circuit. This gate has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 5.00 V
输出接口数 1
输出电流 24 mA
电路数 4
逻辑门个数 4
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74AC86SCX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MC74AC86DR2G 安森美 | 完全替代 | 74AC86SCX和MC74AC86DR2G的区别 |
TC74AC86FN 东芝 | 类似代替 | 74AC86SCX和TC74AC86FN的区别 |
SN74AC86D 德州仪器 | 功能相似 | 74AC86SCX和SN74AC86D的区别 |
