四路2输入正与非门 QUADRUPLE 2-INPUT POSITIVE-NAND GATES
These devices contain four independent 2-input NAND gates. They perform the Boolean functions Y = A \x95 B\ or Y = A\ + B\ in positive logic.
The 54ACT11000 is characterized for operation over the full military temperature range of -55°C to 125°C. The 74ACT11000 is characterized for operation from -40°C to 85°C. View datasheet View product folder
得捷:
IC GATE NAND 4CH 2-INP 16SOIC
立创商城:
与非门
贸泽:
Logic Gates Quad 2-Input
艾睿:
NAND Gate 4-Element 2-IN CMOS 16-Pin SOIC T/R
安富利:
NAND Gate 4-Element 2-IN CMOS 16-Pin SOIC T/R
Chip1Stop:
NAND Gate 4-Element 2-IN CMOS 16-Pin SOIC T/R
Verical:
NAND Gate 4-Element 2-IN CMOS 16-Pin SOIC T/R
罗切斯特:
74ACT11000 Quadruple 2-Input Positive-NAND Gates
德州仪器TI:
4-ch, 2-input, 4.5-V to 5.5-V NAND gates with TTL-compatible CMOS inputs
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 24.0 mA
电路数 4
位数 4
传送延迟时间 12.3 ns
电压波节 5.00 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

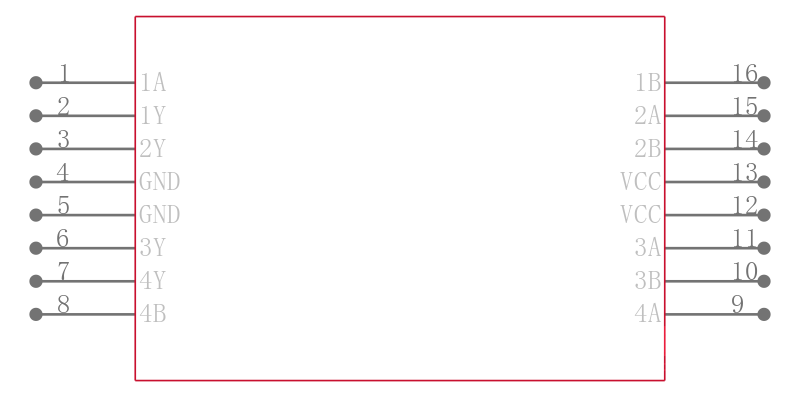

引脚数 16
封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
