低电压四2输入与门与5V容限输入 Low Voltage Quad 2-Input AND Gate with 5V Tolerant Inputs
General Description
The LCX08 contains four 2-input AND gates. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74LVX08 is fabricated with advanced CMOS technol
ogy to achieve high speed operation while maintaining CMOS low power dissipation.
Features
■5V tolerant inputs
■2.3V–3.6V VCCspecifications provided
■5.5 ns tPDmax VCC 3.3V, 10 PA ICCmax
■Power down high impedance inputs and outputs
■r24 mA output drive VCC 3.0V
■Implements patented noise/EMI reduction circuitry
■Latch-up performance exceeds JEDEC 78 conditions
■ESD performance:
Human body model !2000V
Machine model !150V

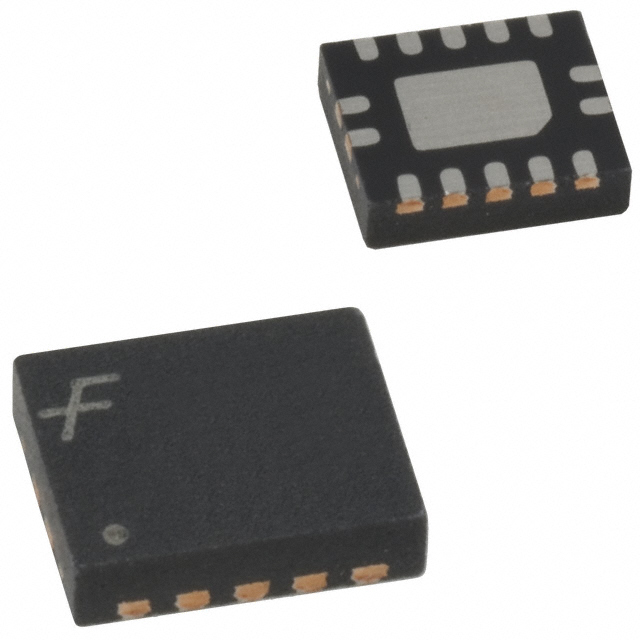

■Leadless Pb-Free DQFN package
电源电压DC 3.30 V
输出接口数 1
电路数 4
逻辑门个数 4
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 DQFN-14
长度 3 mm
宽度 2.5 mm
高度 0.75 mm
封装 DQFN-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
