The 74LVC3GU04 provides three inverters. Each inverter is a single stage with unbuffered output. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment.
* Wide supply voltage range from 1.65 V to 5.5 V * 5 V tolerant input/output for interfacing with 5 V logic * High noise immunity * ESD protection: * HBM JESD22-A114F exceeds 2000 V * MM JESD22-A115-A exceeds 200 V * ±24 mA output drive at VCC = 3.0 V * CMOS low power consumption * Latch-up performance exceeds 250 mA * Multiple package options * Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.
得捷:

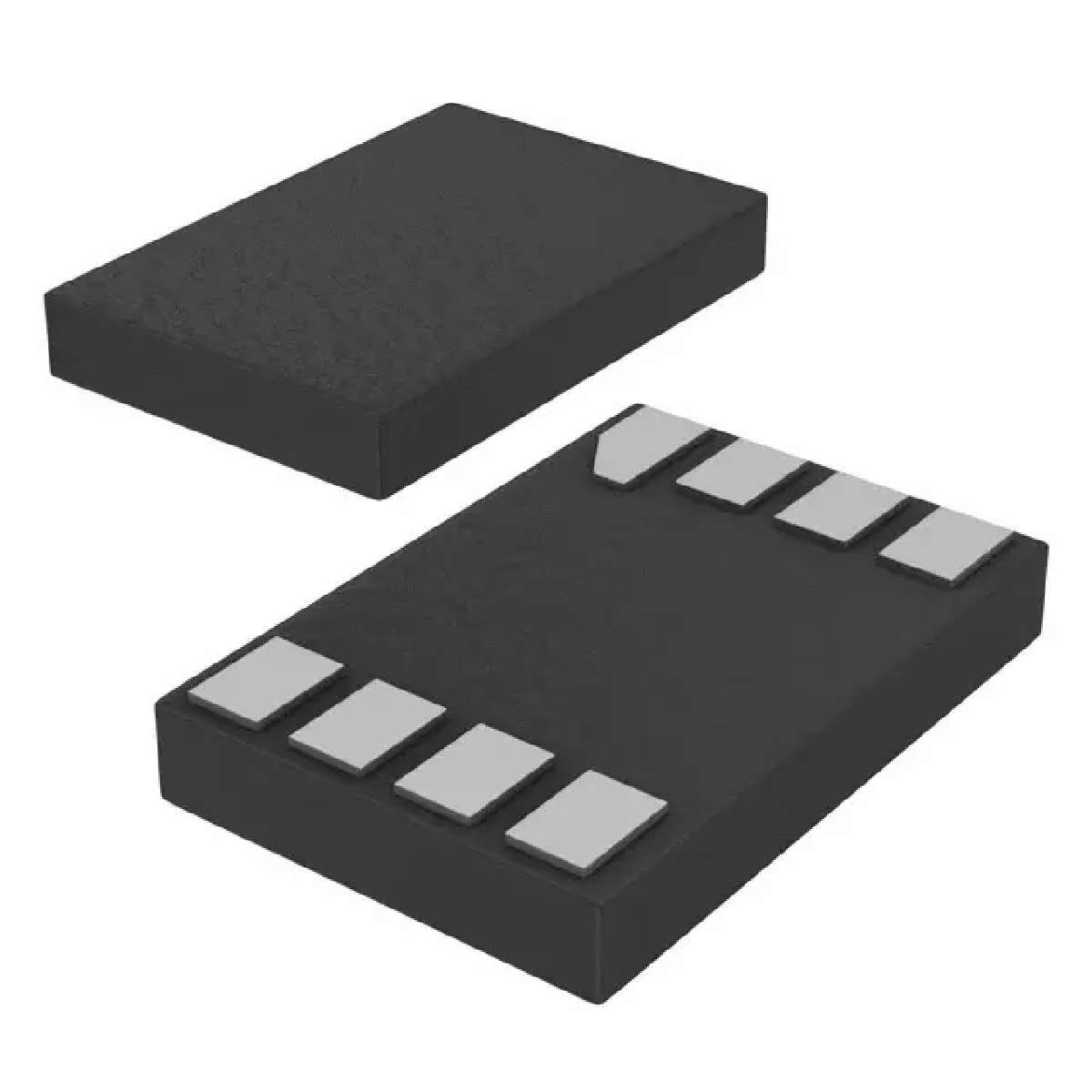

IC BUFFER TRIPLE 1STAGE XSON8U
艾睿:
Inverter 3-Element CMOS 8-Pin XSON8U T/R
安富利:
The 74LVC3GU04 provides three inverters. Each inverter is a single stage with unbuffered output.Inputs can be driven from either 3.3 V or 5 V devices. These features allow the use of these devices in a mixed 3.3 V and 5 V environment.
Verical:
Inverter 3-Element CMOS 8-Pin XSON8U T/R
DeviceMart:
IC BUFFER TRIPLE 1STAGE XSON8U
