低电压四2输入, 3.6V容错输入和输出,与非门 Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs
logic gates from Semiconductor are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 3.30 V
输出接口数 1
电路数 4
逻辑门个数 4
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 14

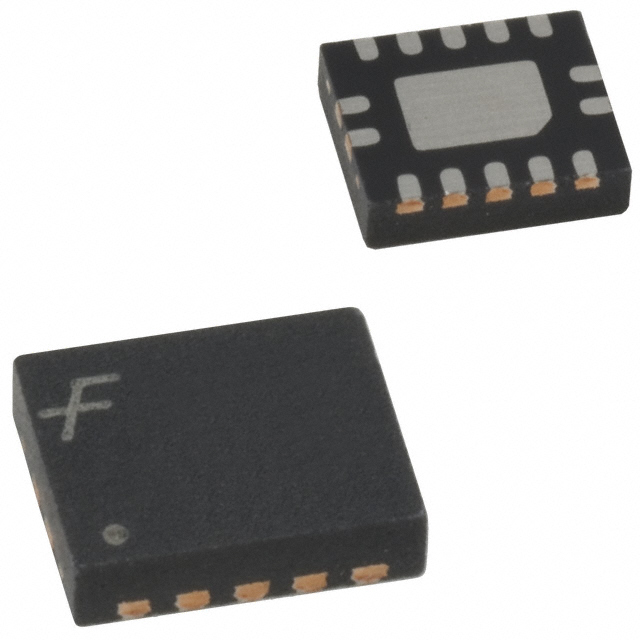

封装 DQFN-14
长度 3 mm
宽度 2.5 mm
高度 0.75 mm
封装 DQFN-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
