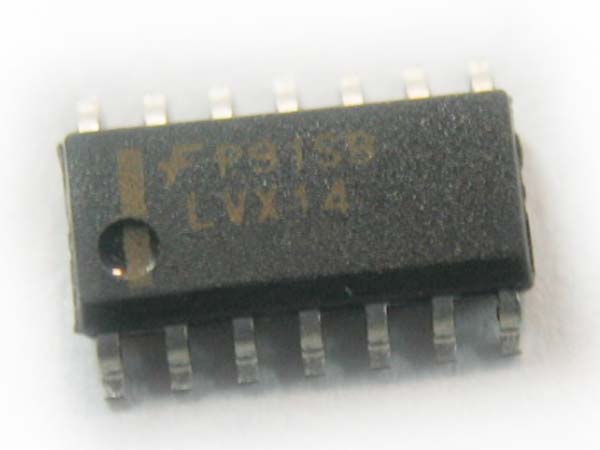

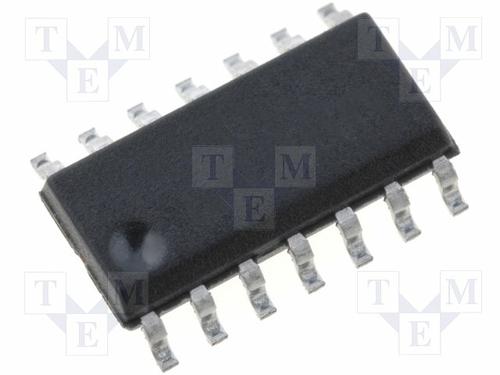

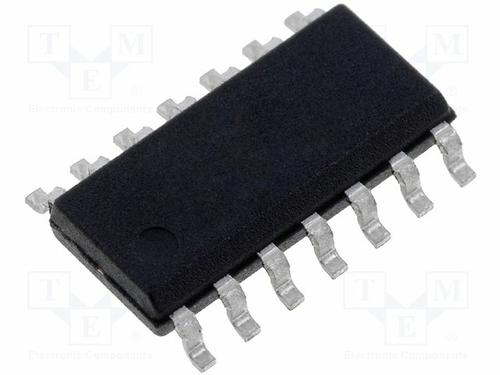

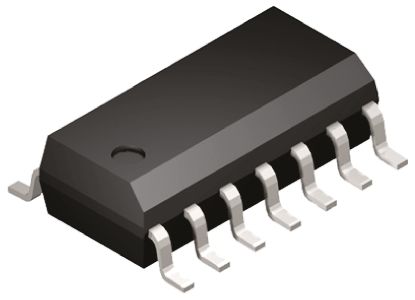

74LVX14M

FAIRCHILD SEMICONDUCTOR  74LVX14M  非门, LV系列, 施密特触发, 6门, 1输入, 4 mA, 2V至3.6V, SOIC-14

The is a low voltage Hex Inverter with Schmitt-trigger input. The device is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, they have a greater noise margin than conventional inverters. The device has hysteresis between the positive-going and negative-going input thresholds typically 1.0V which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems.

.

Input voltage level translation from 5V to 3V

.

Ideal for low power/low noise 3.3V applications

.

Guaranteed simultaneous switching noise level

.

Dynamic threshold performance
