74V1T32 系列 5.5 V 表面贴装 单 双输入 或门 - SOT-23-5L
logic gates, developed by STMicroelectronics, are a great way to implement fundamental logical decisions. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 5.00 V
输出接口数 1
电路数 1
逻辑门个数 1
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5

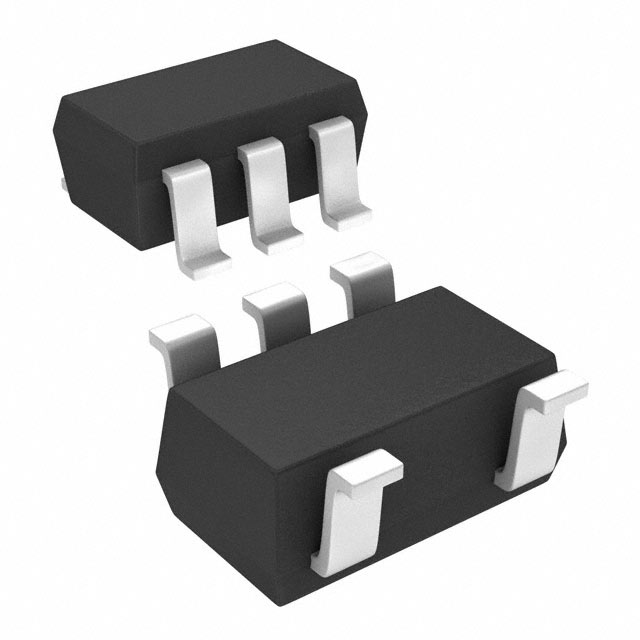

封装 SOT-23-5
宽度 1.75 mm
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
